RENOGY PRO | IP67 50A DCDC Battery Charger With MPPT

RENOGY PRO | IP67 50A DCDC Battery Charger With MPPT

500-11018

Features & Pros

  • IP67 Protection (Dust Proof & Water Proof 1m submerged in freshwater for up to 30mins)
  • Compact Size at 178.2 x 121.5 x 37.5mm and 1.86kg Weight

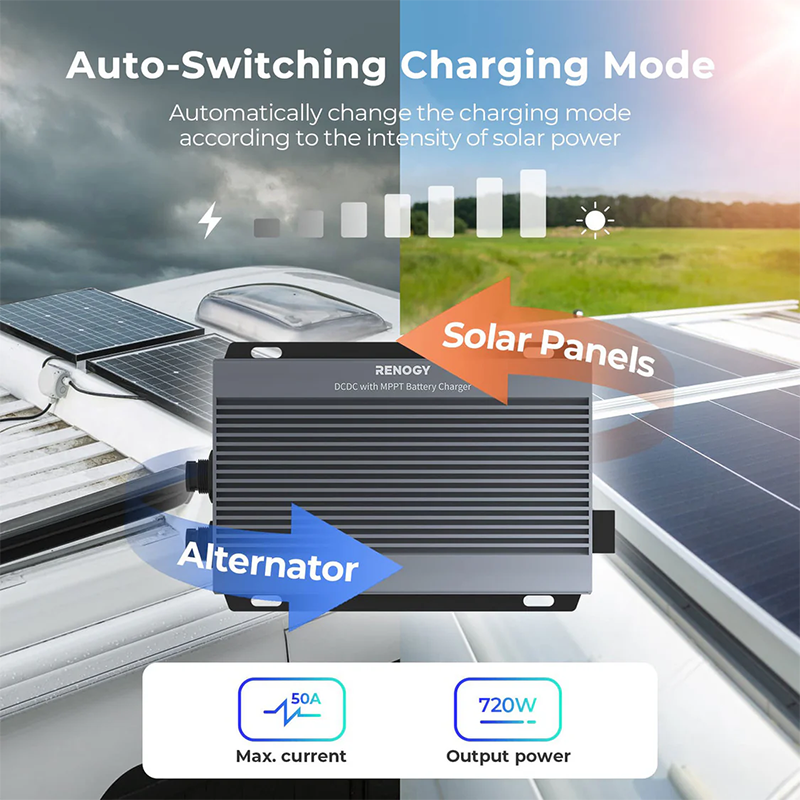

  • Intelligent Dual Charging Mode - Intelligently combining vehicle and solar power, this charger automatically adjusts modes based on sunlight intensity, ensuring optimal energy use at all times.
  • Compatible with a Wider Range of Voltage
  • Optimized Charging Efficiency - With 720W charging power, this battery charger can fully charge a 1.2kWh battery in just 1.8 hours.
  • Enhanced Charging Safety Over Voltage Protection, Over Current Protection, Reverse Current Protection, Reverse Connection Protection, Overheat Protection, Battery Isolation
  • Drop Resistant the sheet metal casing provides the charger with a durable shell, designed to withstand drops and impacts for long lasting performance
  • Temperature Resistant built to endure extreme temperatures, this charger is capable of operation in temperatures from -35C to 80C (maintains full load performance up to 55C)
  • Charges house battery while trickle charging the vehicles starter battery to ensure vehicles battery is also maintained (if set up this way)
FIND A STOCKIST
Specifications

Model: RBC2125DS
System Voltage: 12V/24V - 12V/24V
Solar Input Voltage: 50 VDC
Output Voltage: 9-32 VDC
Alternator Input: 9-32 VDC
Maximum Output Current Rating: 50A@12V25A@24V
Output Power: 720W
Battery Types: AGM/SLD, GEL, FLOODED, LITHIUM
Input Fuse Rating: 75A-100A
Output Fuse Rating: 75A-100A
Charging Efficiency: 0.97
Temperature Compensation: -3mV / / 2V (Non-Lithium);0mV / / 2V; no compensation (Lithium)
Idle Power Consumption: 100mA
Terminal Range: 8AWG-4AWG
Communication Protocol: --40 to 80
Humidity: Modbus ; RV-C
Operating Temperature Range: -35 to 80
Storage Temperature Range: -40 to 80
Dimensions: 178.2 x 121.5 x 37.5mm
Weight: 1.86 kg
Certification: CE; RoHS; FCC Part 15 class B
Warranty: 3-year material warranty
