RENOGY CORE | DCC50S 12V 50A Dual-Input DC2DC MPPT Charger.

RENOGY CORE | DCC50S 12V 50A Dual-Input DC2DC MPPT Charger.

500-11040

The Renogy CORE DCC50S 12V 50A Dual-Input Charger delivers powerful, intelligent charging from both your alternator and solar panels, keeping your auxiliary battery topped up wherever your travels take you. Built for 12V systems in RVs, 4WDs, caravans, boats, and off-grid setups, it combines dual-input capability with high-efficiency MPPT solar charging in one compact, rugged unit.

Key Features

  • Dual-input charging draws power from your vehicles alternator and solar panels simultaneously
  • MPPT solar optimisation up to 94% conversion efficiency for maximum solar harvest
  • 660W solar input capacity supports up to 50V open-circuit solar arrays

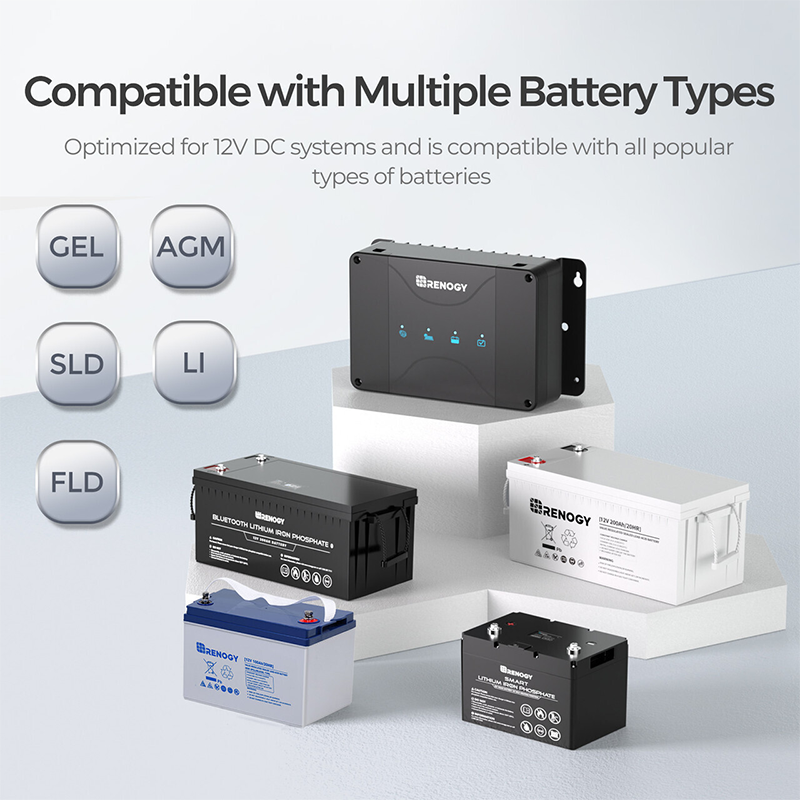

  • Multi-stage charging tailored profiles for Flooded, Gel, AGM, and Lithium batteries
  • Remote monitoring compatible with Renogy DC Home App via RJ45 port or optional Bluetooth (BT-2 Module)
  • Built-in protections over-voltage, over-temp, over-current, reverse polarity, and isolation safeguards

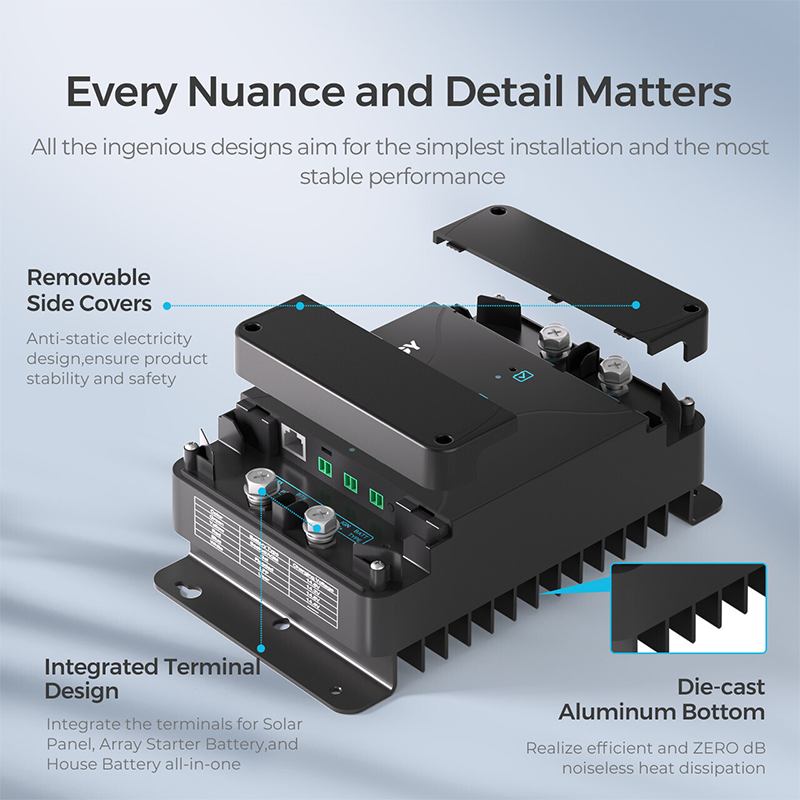

  •  Compact & durable easy to install in a wide range of mobile and off-grid environments
FIND A STOCKIST
Specifications

System Voltage   12V

Max Charging Current        50A

Max Solar Input   50V / 660W

Charging Efficiency             Up to 94%

Operating Temp Range      -35C to 65C

Dimensions          244 x 146 x 96 mm

Weight   1.86 kg

Certifications       CE, RoHS, FCC Part 15 Class B
