12V electric operation
Raise and lower the trailer coupling using the onboard controls, reducing the effort of manual winding.
Specifications
No specifications available
GATOR MINI 12V Trailer Jack - Fits Std AUS Jockey Wheel Clamps | Up to 680KG Capacity
$0.00
Skip to product information
FIND A STOCKIST

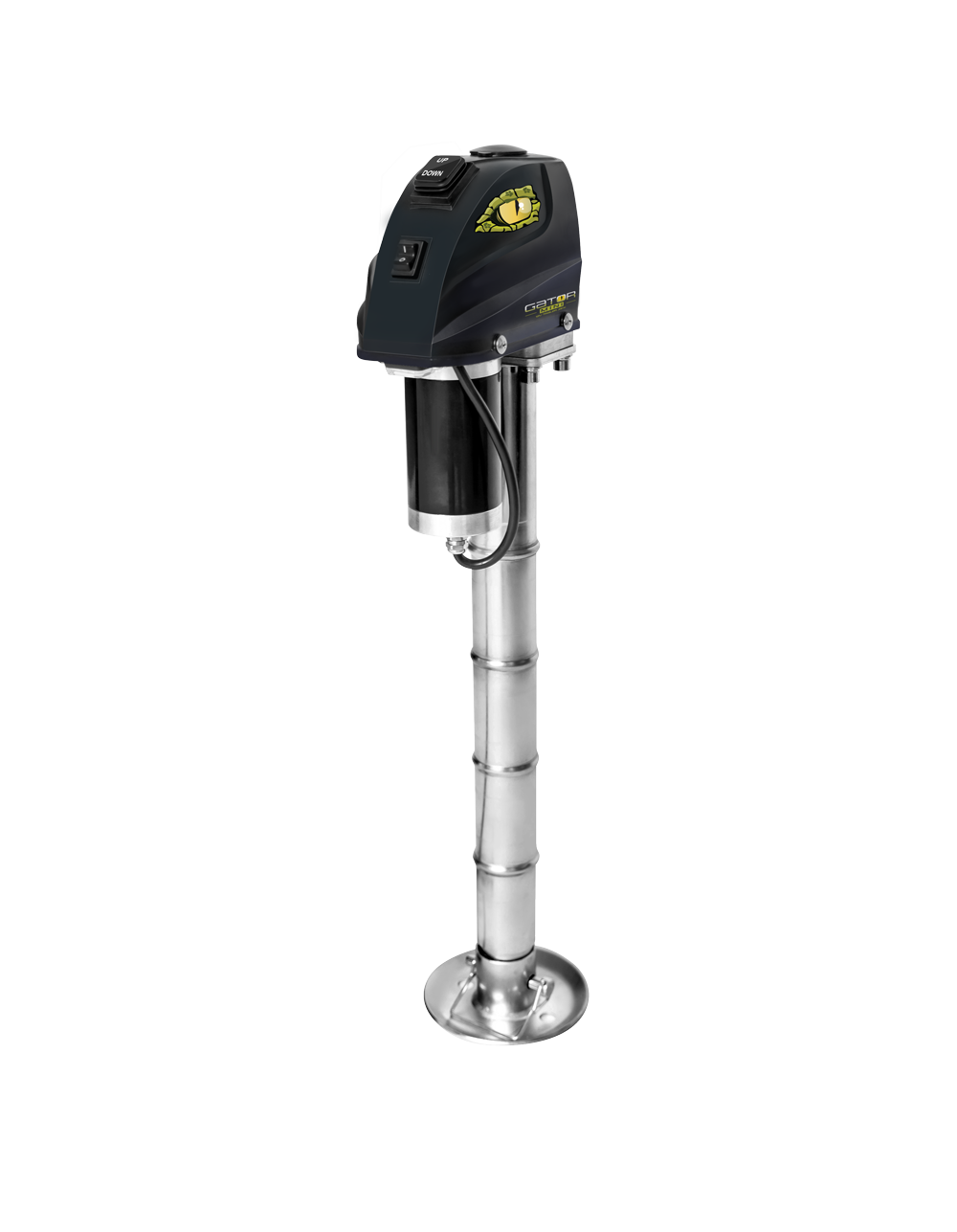

GATOR MINI 12V Trailer Jack - Fits Std AUS Jockey Wheel Clamps | Up to 680KG Capacity
450-10080
Take the effort out of hitching and setting up.
The GATOR MINI 12V Trailer Jack provides electric raising and lowering in a compact unit designed for a suitable standard jockey wheel clamp with a 48 mm outer tube.
Its lifting capacity depends on the attachment used: up to 680 kg with the foot plate or 8-inch wheel, and up to 545 kg with the 6-inch wheel. It provides 355 mm of powered screw travel (±6 mm) to help make caravan, camper and trailer setup easier.
An integrated LED work light helps illuminate the coupling area, while the manual crank override provides backup operation. The included 2 m power lead connects via a 50 A Anderson plug.
Key features
- 12V electric operation
- Lifting capacity: 680 kg max with the foot plate or 8-inch wheel; 545 kg max with the 6-inch wheel
- Fits a suitable standard jockey wheel clamp with a 48 mm outer tube
- 355 mm powered screw travel (±6 mm)
- Integrated LED work light and manual crank override
- IP55 protection rating
- Includes a 2 m power lead with a 50 A Anderson plug
- Approx. 6.3 kg
Optional accessories are sold separately.
The 680kg rating is the jack’s lifting capacity, not the trailer’s total weight. Check clamp suitability and installation requirements before use. Optional accessories are sold separately.
GATOR MINI 12V Trailer Jack
Small in size.
Big on performance.
Take the effort out of hitching and setting up. The GATOR MINI brings compact electric lifting to your caravan, camper or trailer, with a lifting capacity of up to 680 kg with the foot plate or 8-inch wheel, and 545 kg with the 6-inch wheel. It fits a suitable standard 48 mm jockey wheel clamp.
Find nearest stockist View specifications
Up to 680 kgWith foot plate or 8-inch wheel; 545 kg max with 6-inch wheel
12V DCElectric operation with manual override for backup
48 mmOuter tube fits a suitable standard jockey wheel clamp
An easier start to every trip
Less winding.
More time for adventure.
Whether you are preparing to leave home or settling into camp, the GATOR MINI helps simplify the routine of raising and lowering your trailer coupling.
A familiar fit
The 48 mm outer tube fits into a suitable standard jockey wheel clamp, providing a compact alternative to a manually operated jockey wheel.
Practical lifting travel
355 mm ±6 mm powered screw travel gives you adjustment for everyday hitching and setup.
Power connection included
The supplied 2 m lead with 50 A Anderson plug connects to a suitable 12V power supply.
Designed around everyday use
Practical features.
Simple operation.
From electric lifting to an integrated work light, the GATOR MINI brings useful features together in one compact unit.
Integrated LED work light
Illuminate the coupling area when hitching or setting up in low light.
Manual override
Backup operation provides a way to use the jack when electrical power is unavailable.
IP55 protection
An IP55 protection rating supports outdoor use in changing conditions.
Power lead included
Supplied with a 2 m power lead and 50 A Anderson plug for connection to a suitable 12V supply.
Compact and lightweight
An approximate weight of 6.3 kg and a compact motor housing make the GATOR MINI a practical setup upgrade.
Ready for the road ahead
Make setup part of the easy life.
Spend less effort on manual winding and more time enjoying the journey, with electric lifting for your caravan, camper or trailer.

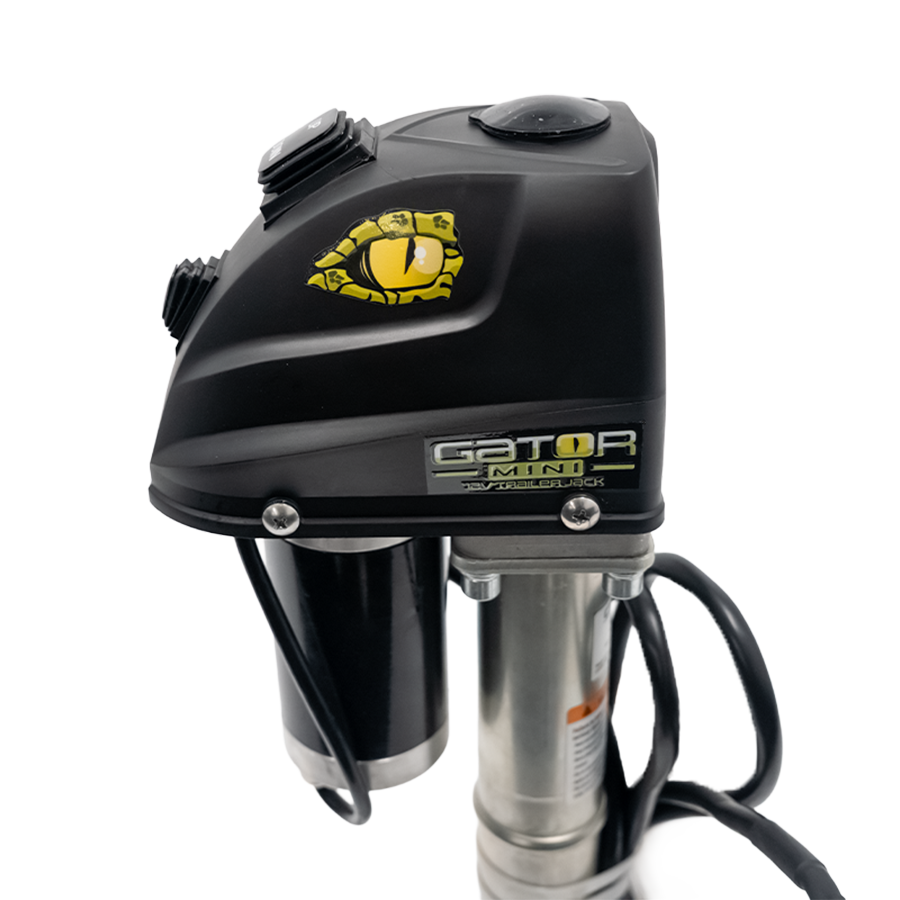

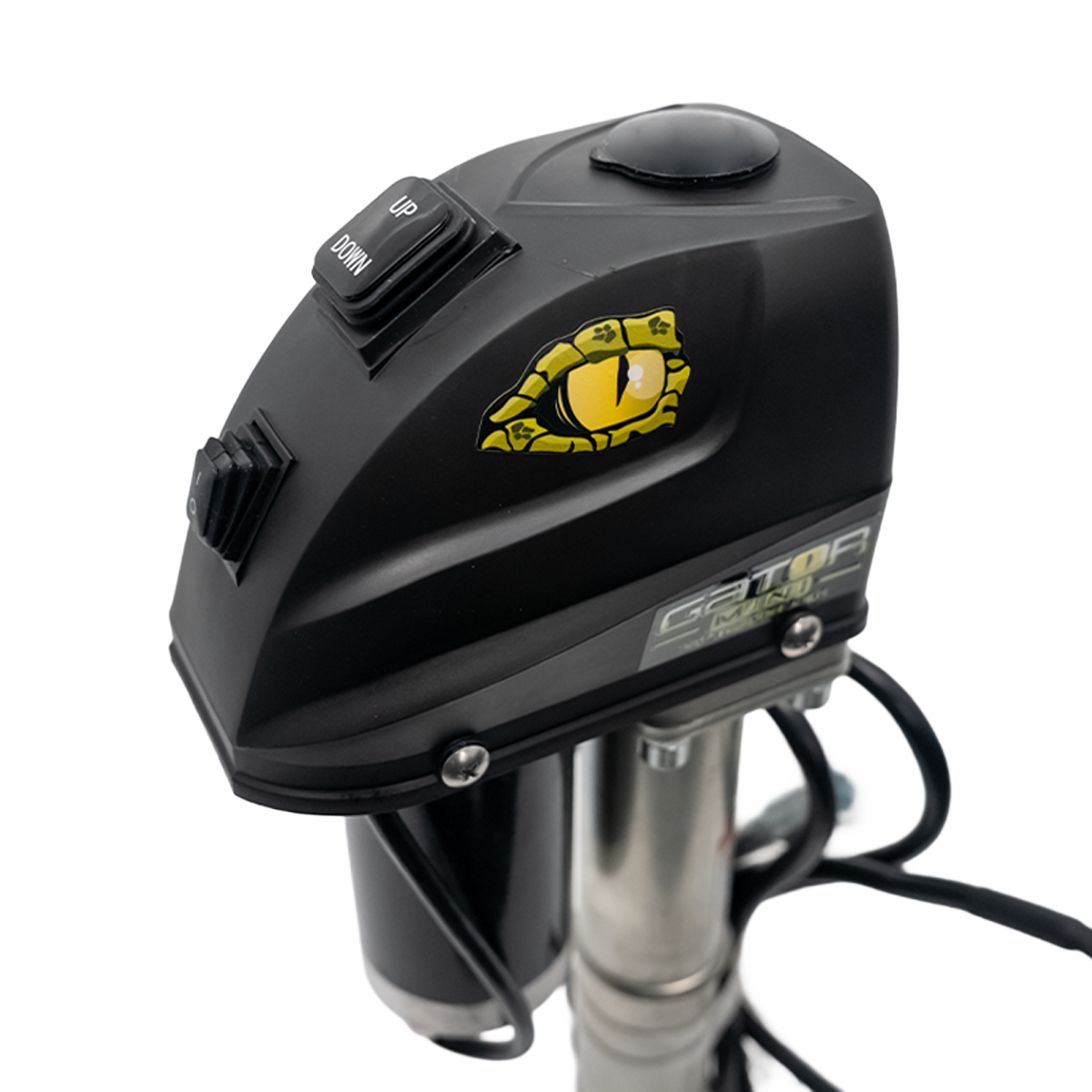

Control at your fingertips
Raise. Lower.
Light the way.
Clearly marked controls bring raising, lowering and lighting together in one compact unit.
The LED work light helps you see the coupling area. If power is unavailable, the manual override provides backup operation.
Fitment information
Electric lifting.
A familiar fit.
The GATOR MINI fits into a suitable standard 48mm jockey wheel clamp. Check your existing clamp, available clearance and power connection before installation.
48 mm outer tubeFor a suitable standard jockey wheel clamp
355 mm ±6 mmPowered screw travel
Lifting capacity depends on the attachment: 680 kg max with the foot plate or 8-inch wheel, and 545 kg max with the 6-inch wheel. Confirm the attachment and supported drawbar load when checking the required capacity.

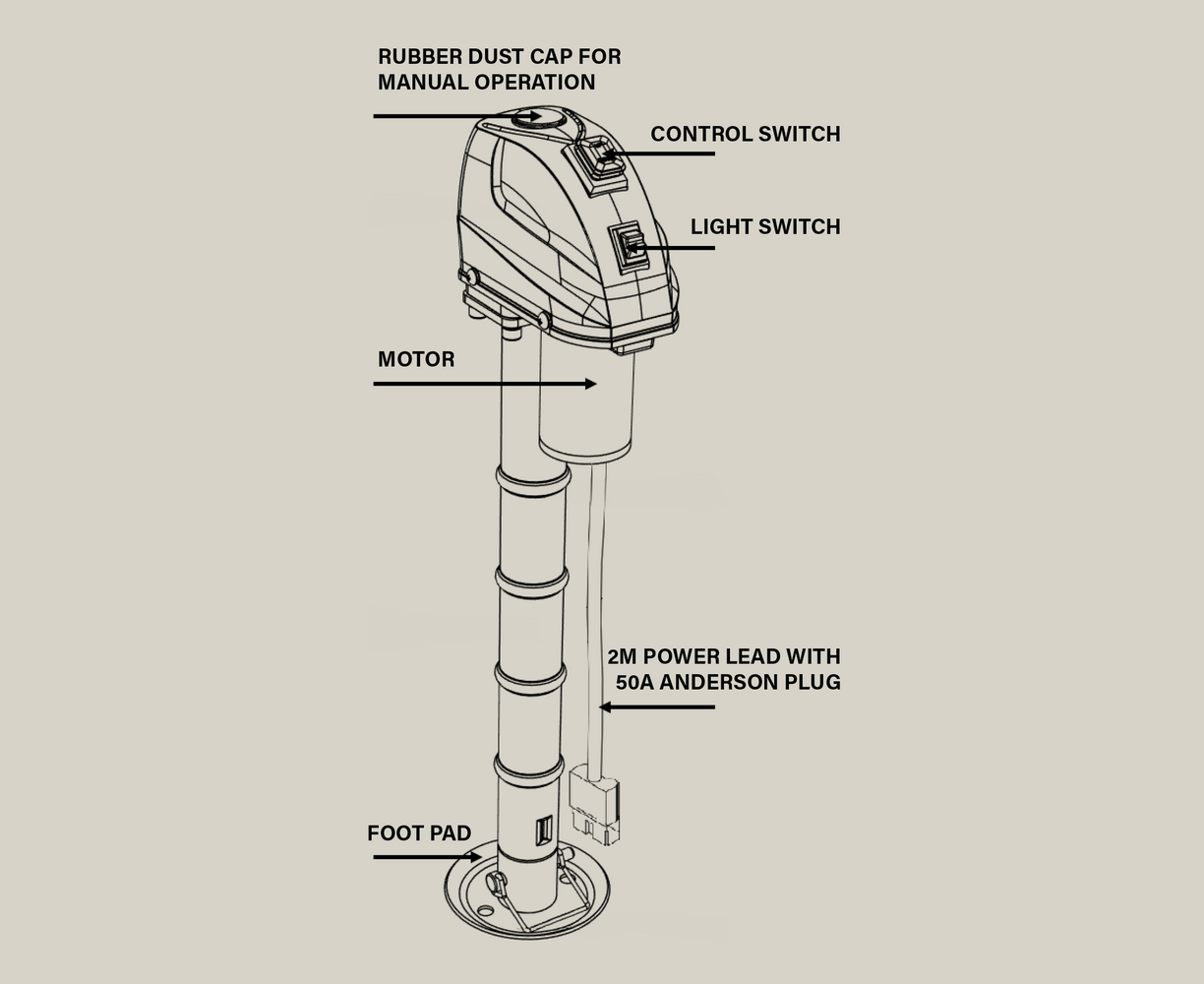

Product specifications
GATOR MINI at a glance.
- Product code
- 450-10080
- Lifting capacity
- 680 kg max with foot plate or 8-inch wheel; 545 kg max with 6-inch wheel
- Operating voltage
- 12V DC
- Powered screw travel
- 355 mm ±6 mm
- Outer tube diameter
- 48 mm
- Approximate weight
- 6.3 kg
- Protection rating
- IP55
- Power lead length
- 2 m
- Connection
- 50 A Anderson plug
- Mounting
- Four position mounting ribs
Includes the 2 m power lead with 50 A Anderson plug. Backed by a 3-year warranty. Keep the Anderson connection outside the applicable LPG exclusion zone. Optional accessories are sold separately.
Complete your setup
Optional accessories.

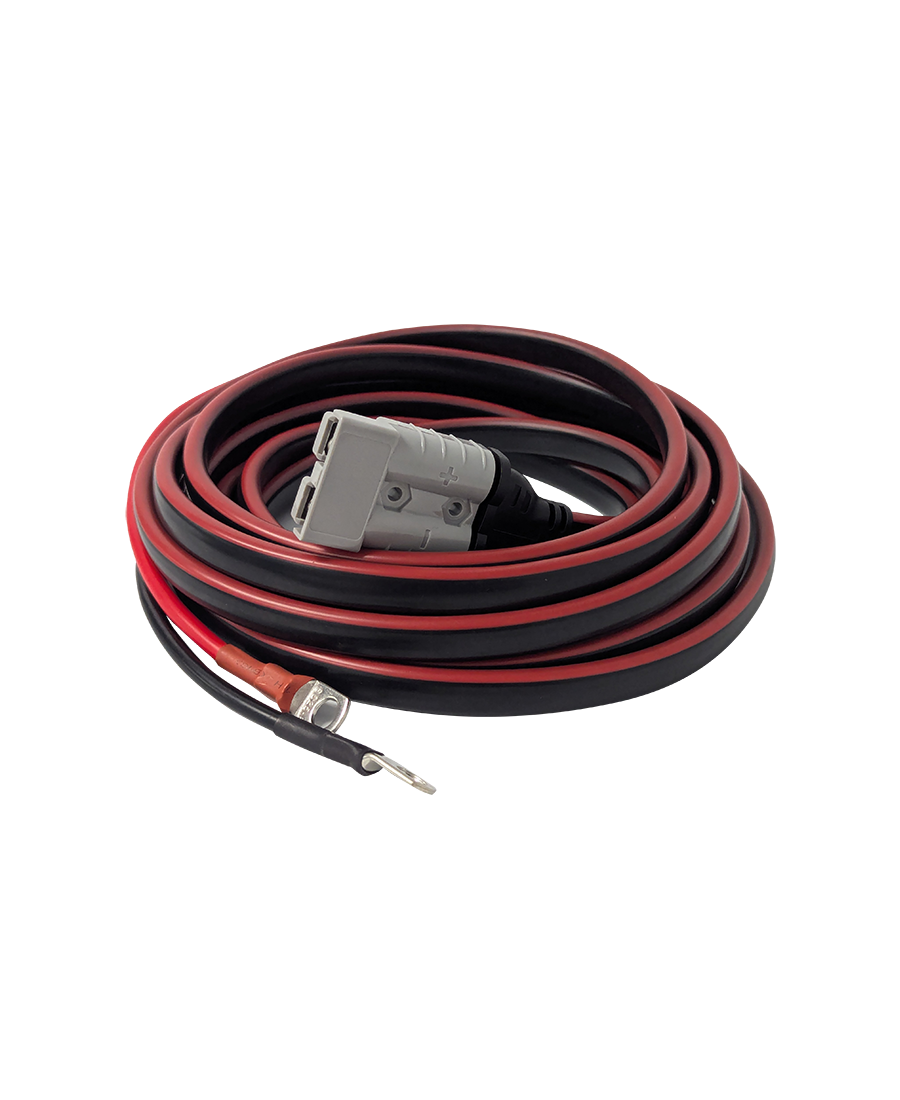

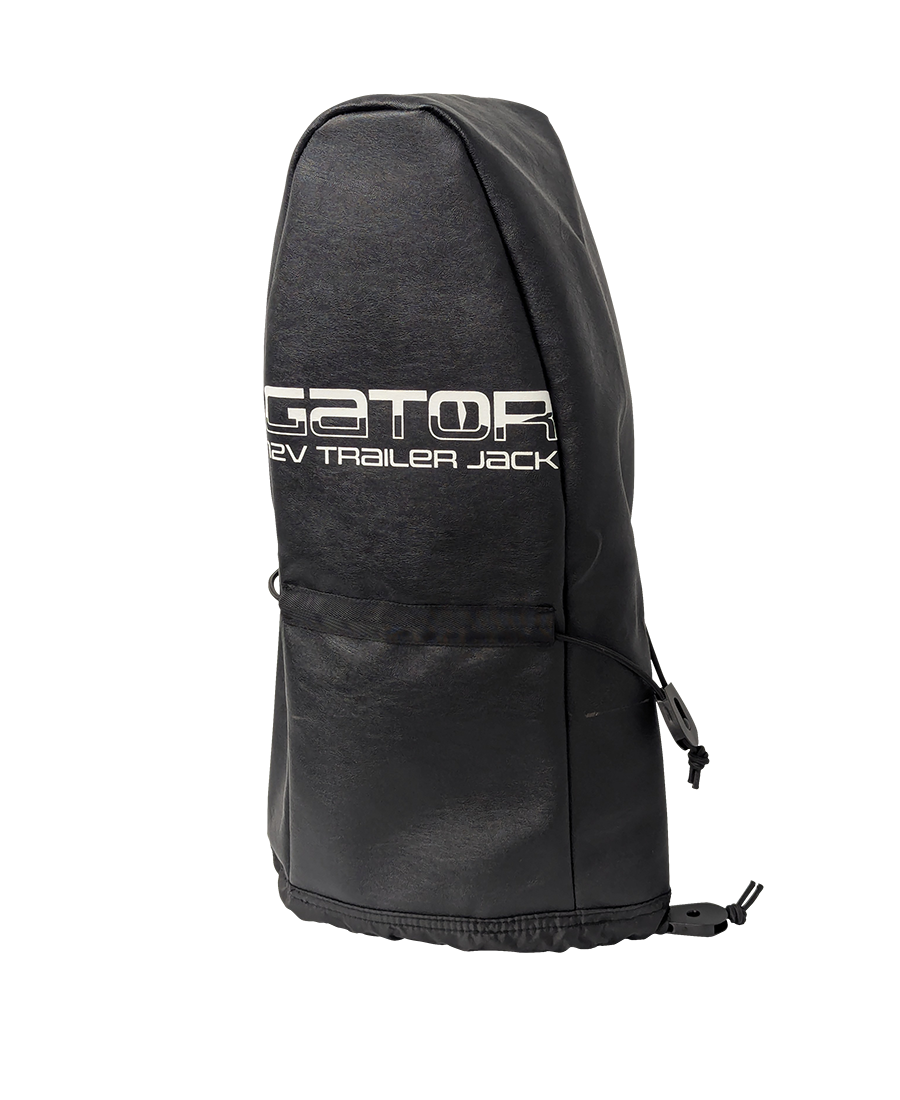

Explore wheel attachments, storage protection and power connection options for the GATOR MINI.

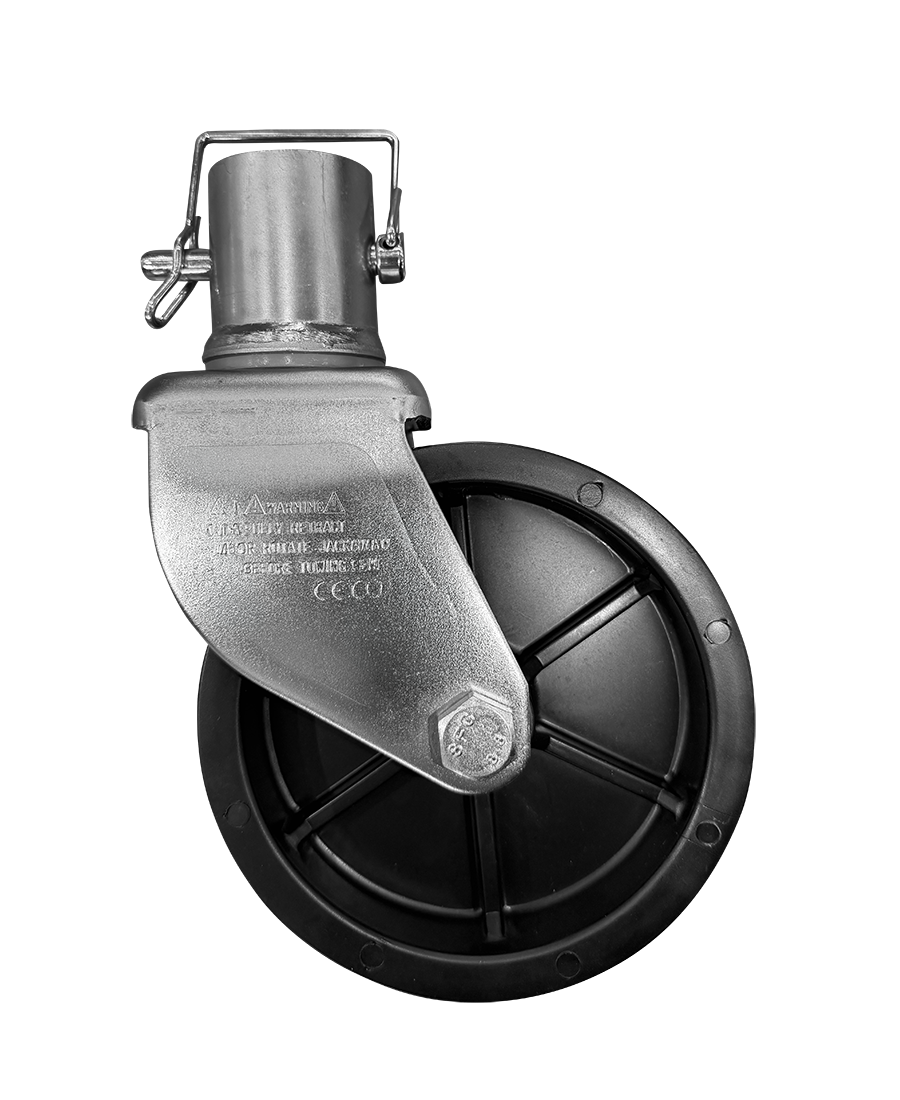

450-10082
150mm Swivel Jockey Wheel
6 inch wheel attachment.
Coming soon

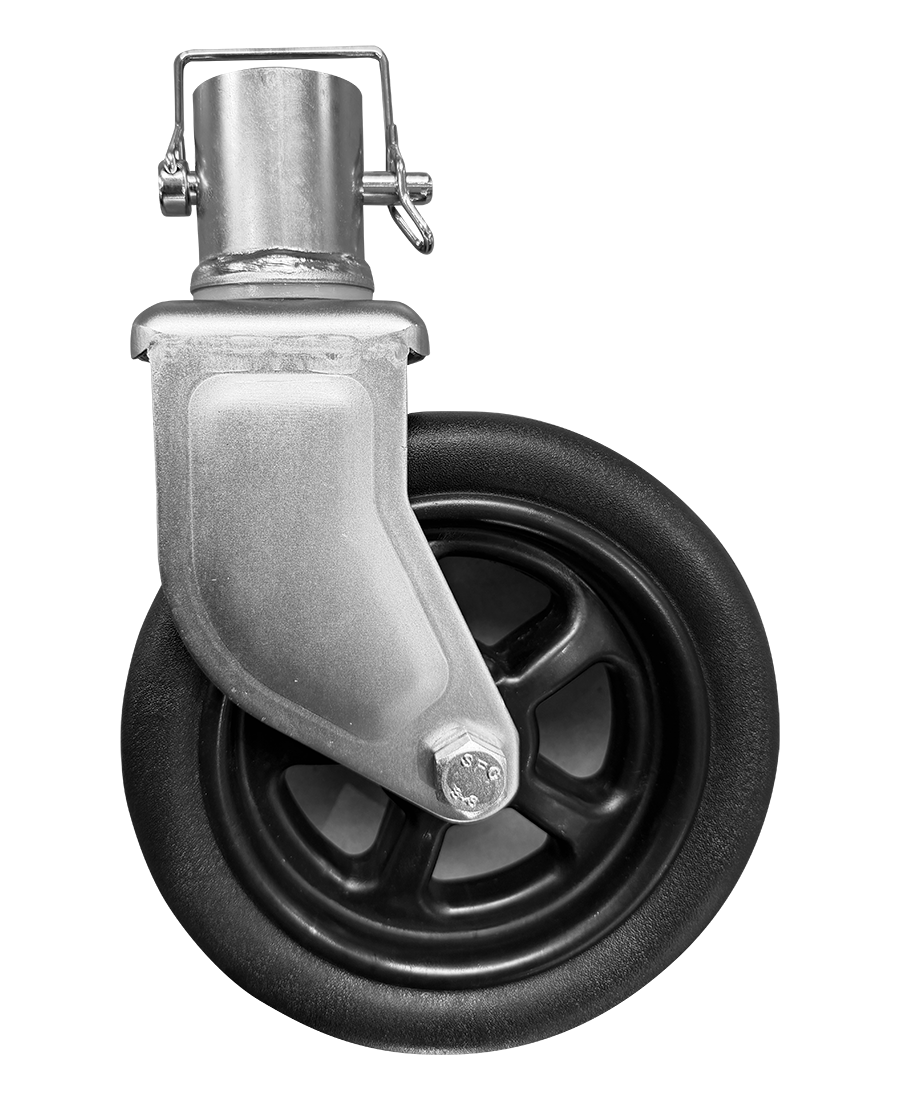

450-10084
200mm Swivel Jockey Wheel
8 inch wheel attachment.
Coming soon

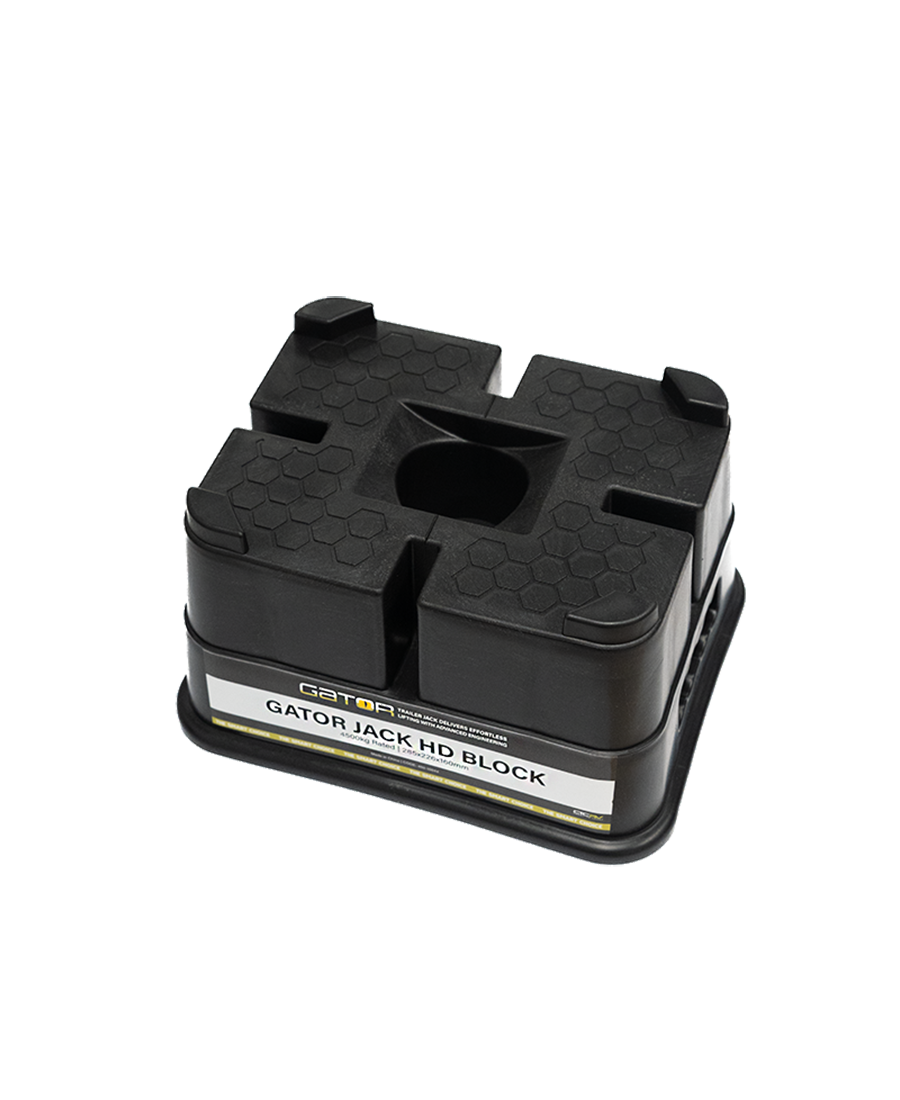

450-10044
GATOR JACK HD BLOCK
150mm of additional support height. The block rating does not increase the jack’s lifting capacity.
View productAvailable through Coast to Coast RV
Ask your local stockist about the GATOR MINI.
Use the Coast to Coast RV stockist locator to connect with a retail partner near you for availability and product enquiries.
Find nearest stockist
