Sphere 100w Mono Crystalline Twin Cell Solar Panel. 670x780x35mm
Sphere 100w Mono Crystalline Twin Cell Solar Panel. 670x780x35mm

Sphere 100w Mono Crystalline Twin Cell Solar Panel. 670x780x35mm

500-06278

Sphere Twin Cell Solar Technology is the future of solar power generation for the Caravanning and RV Market.

Researched and developed in Australia, Sphere Twin Cell Technology is an innovative solution to the common issue of partial shading that affects caravan and RV solar power applications. Partial shading caused by roof top mounted accessories such as air conditioners, roof vents and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional panel is covered by shade, a blockage is created that drastically reduces overall output.

Sphere Twin Cell Technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half of a panel is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional mono-crystalline panels from providing vital power, Sphere Solar Panels with Twin Cell Technology will keep on charging.

Sphere Twin Cell 100W and 130W panels feature improved cell efficiency, enabling enhanced performance while occupying a smaller footprint. This advancement not only optimises power generation but also provides more versatile mounting options for installations in various configurations. The panels are complemented by by-passed diodes, which enhance reliability and further mitigate power drops caused by shade.

Features

  • Sphere Twin Cell Solar Technology for improved performance in partial shade.
  • Improved cell efficiency in a smaller footprint for more versatile mounting options.
  • By-passed diodes to improve reliability and further minimize power drops caused by shade.

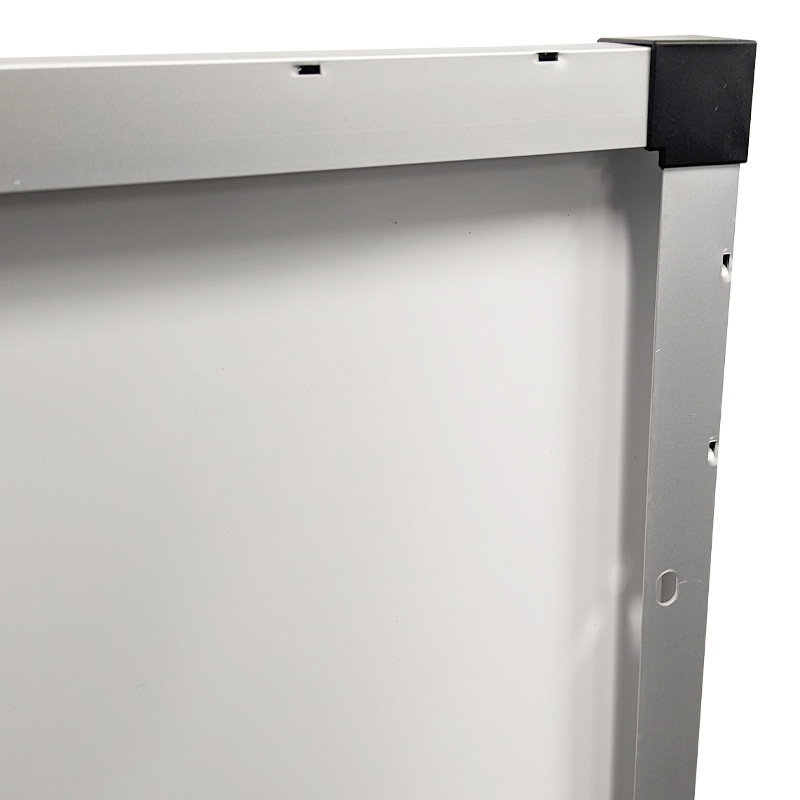

  • An anodized aluminium frame to withstand rust with pre drilled mounting holes for a versatile range of applications.
  • Antireflective, high transparency tempered glass for durability

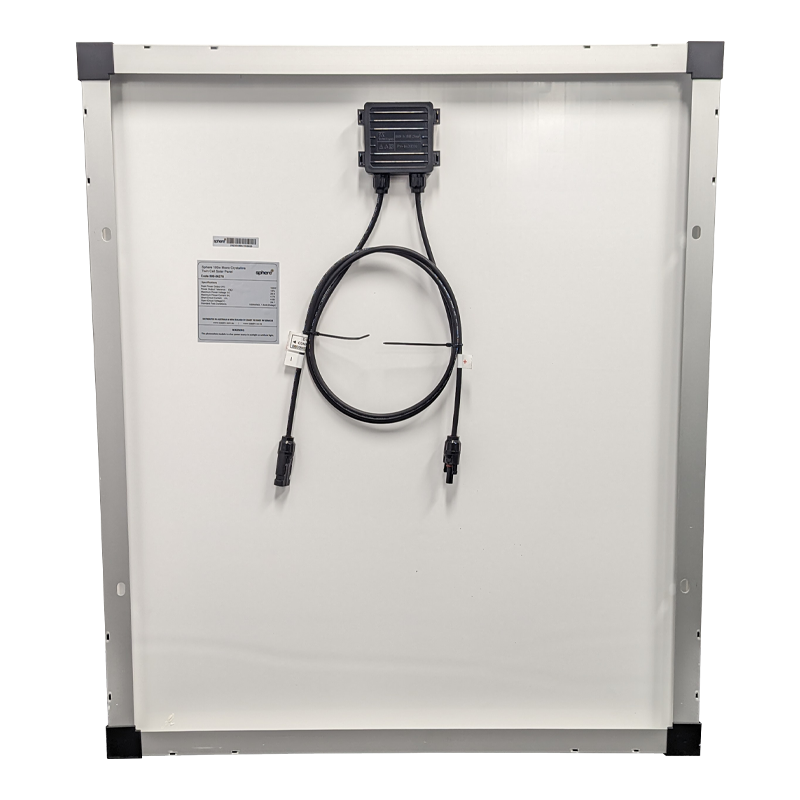

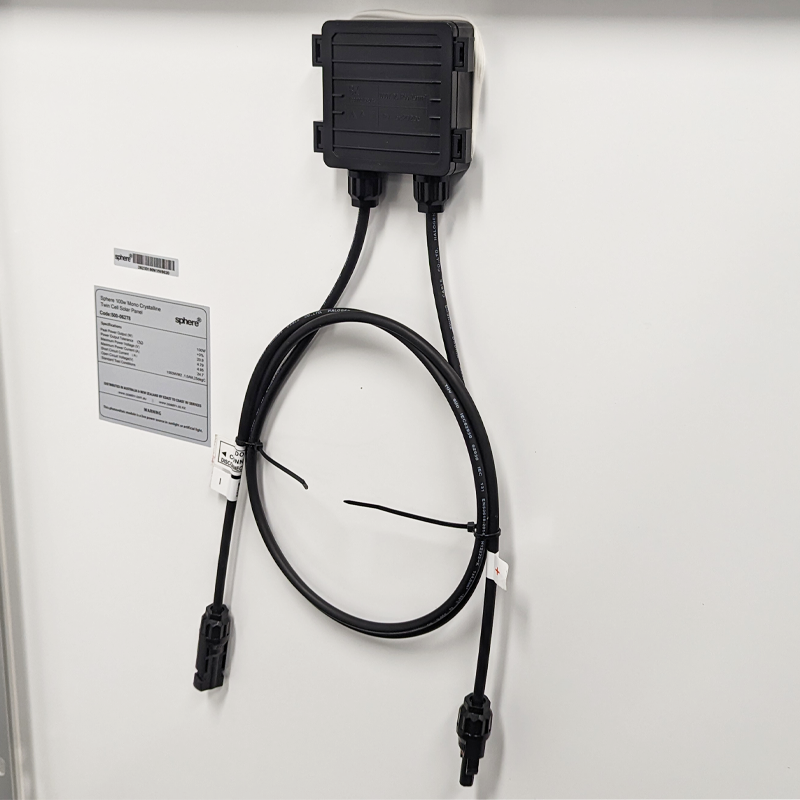

  • IP65 rated junction box provides complete protection against dust and water.
 FIND A STOCKIST
Specifications



Part number

500-06278

500-06280

Electricity Performance

Standard Test Conditions

1000W/M2,1.5AM,25

Peak Power Output (W)

100 W

130W

Power Output Tolerance

3%

3%

Maximum Power Voltage (V)

20.9

20.9

Maximum Power Current (A)

4.79

6.22

Short Circuit CurrentA

4.95

6.56

Open Circuit Voltage(V)

24.7

24.7

Maximum System Voltage

1000V/DC

1000V/DC

Mechanical Performance

Junction Box Type

0.9 m 4mm 2 solar cable fitted with MC 4 IP65

Number of Cells

4*18 72pcs

4*18 72pcs

Module Size (mm)

670*780*35*30*1.2

670*1012*35*30*1.2

Module Net Weight

6.27 KG

8.15KG

Temperature Coefficient



Working Temperature

40 85

4085

Power TK

0.45%/

0.45%/

Open Circuit Voltage T

0.3 3%/

0.33%/

Short Circuit Current T

0.045%/

0.045%/

Test temperature

252

252

Guarantee of power output

10 Years

90%

25 Years

80%

Material Warranty

12 Months
