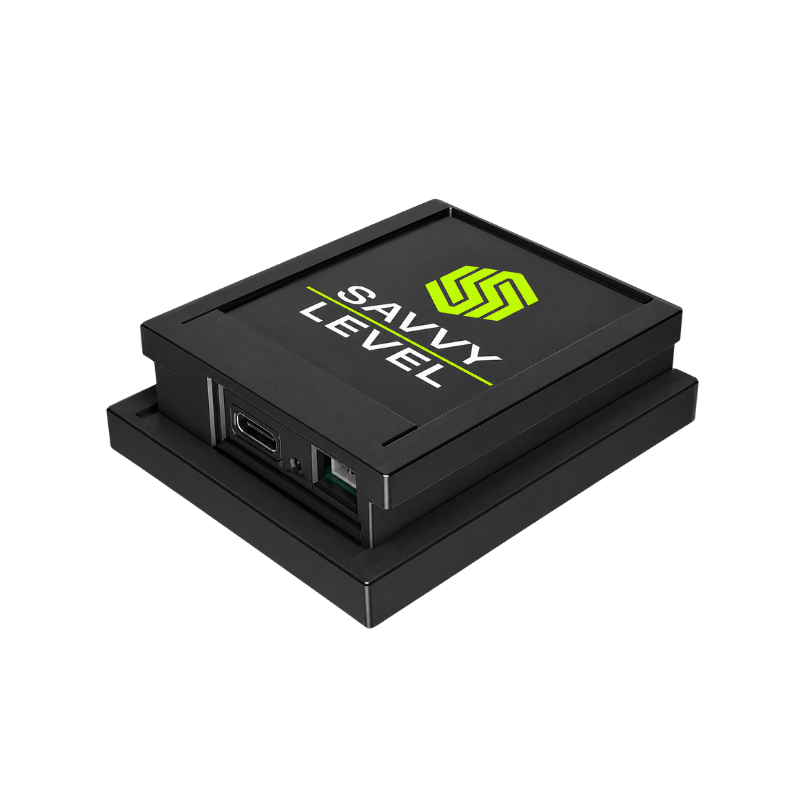

The SavvyLevel S5 is designed to help you level your caravan, motorhome, 4WD, camper or trailer quickly, accurately and with confidence.

Simple to set up and easy to use, the SavvyLevel S5 connects directly to your smartphone via Bluetooth, with no Wi-Fi or internet connection required. Once paired, the device automatically reconnects when your phone is back in range, making every setup faster and easier.

The unit can be powered via USB-C for a no-wiring installation, or connected to your caravan battery supply using the optional wiring kit for a more permanent setup. When connected to your RV battery, the SavvyLevel S5 also provides real-time battery voltage reporting through the app.

Engineered for exceptional accuracy, every SavvyLevel S5 is factory tested, calibrated and built with thermal calibration and compensation, delivering superb levelling accuracy of ±0.1° across normal operating temperatures. Sensor fusion technology helps reduce unreadable jitter during motion and while using the high-precision 10x zoom mode, giving you a clearer and more stable levelling display.

For users levelling with blocks, the SavvyLevel® S5 can quickly display the number of blocks required for roll correction. For caravans, campers and trailers, it also includes a hitching and unhitching height recording indicator, capturing the A-frame height at the release point from the tow vehicle for easier re-hitching.

Built with future-ready hardware to support upcoming app features, the SavvyLevel S5 is designed to keep evolving as new capabilities are added.

Key Features

  • Smart Bluetooth levelling system for caravans, motorhomes, 4WDs, campers and trailers
  • Compatible with Apple™ devices running iOS 13 and above
  • Compatible with Android™ devices running Android™ 7.0 and above
  • No Wi-Fi or internet connection required
  • Powered via USB-C or 12V/24V caravan battery supply
  • Optional wiring kit available for permanent installation
  • Real-time RV battery voltage reporting when connected to battery supply
  • Automatic reconnection once paired
  • Factory tested and calibrated for accuracy
  • Thermal calibration and compensation for ±0.1° accuracy
  • Supports portrait and landscape app orientation
  • Top-view levelling display showing each wheel’s levelling requirement
  • 10x zoom mode for precise levelling under 4.5°
  • Inclinometer gauges for ±45° and ±4.5° zoom display
  • Block count display for roll correction
  • Hitching and unhitching height recording for caravans, campers and trailers
  • Sensor fusion for a smoother display during motion and fine levelling
  • Future-ready hardware designed to support upcoming app features
FIND A STOCKIST
Specifications

Here are the Technical Specifications – Wireless Bluetooth® 5.2 Low Energy connectivity (no internet or cloud services required). BLE transmit power 15dbm and receiver sensitivity -96dbm. Full device BLE backward compatibility using 1M PHY. Advanced gyroscopic sensor fusion with sample phase matching and AI mix selection. Device range typically 80-200m in an open environment. Combined pitch and roll data steaming ultra-low latency of 75mS Accuracy better than ±0.1° over entire operating environment. Precision better than ±0.02°. Supply voltage: either from USB or internal RV’s 12V/24V system. Fully protected against reverse wiring when the internal RV 12V/24V connection is used. Low operating current when app connected < 12 mA @ 12V. Operating temperature extremes -40°C to +85°C. ± 45° pitch and roll in normal operation. ± 4.5° in (10x) zoom mode. Physical dimensions measure 73mm x 58mm x 22mm.
