Designed to maximise space and flexibility inside your caravan, camper, or motorhome, the Nuova Mapa Adjustable Height Table Leg with Turn Table and Slide transforms your dining area in seconds. Imagine sitting down for a meal, effortlessly sliding or swivelling the table exactly where you need it, then lowering it to create a comfortable extra bed when the day is done. With its smooth telescopic action, durable aluminium sliding system, and clever Italian engineering, the Nuova Mapa gives you complete control over your living space while making every inch of your RV work smarter.
Important Information:
Tabletop not included
Fixing screws not included
Does Not stop in between fixed bed or table top position.
Due to the size and weight of this item we cannot deliver to PO Boxes
Features:
Convertible Table to Bed System
Quickly lower the table to create an extra sleeping area when needed.

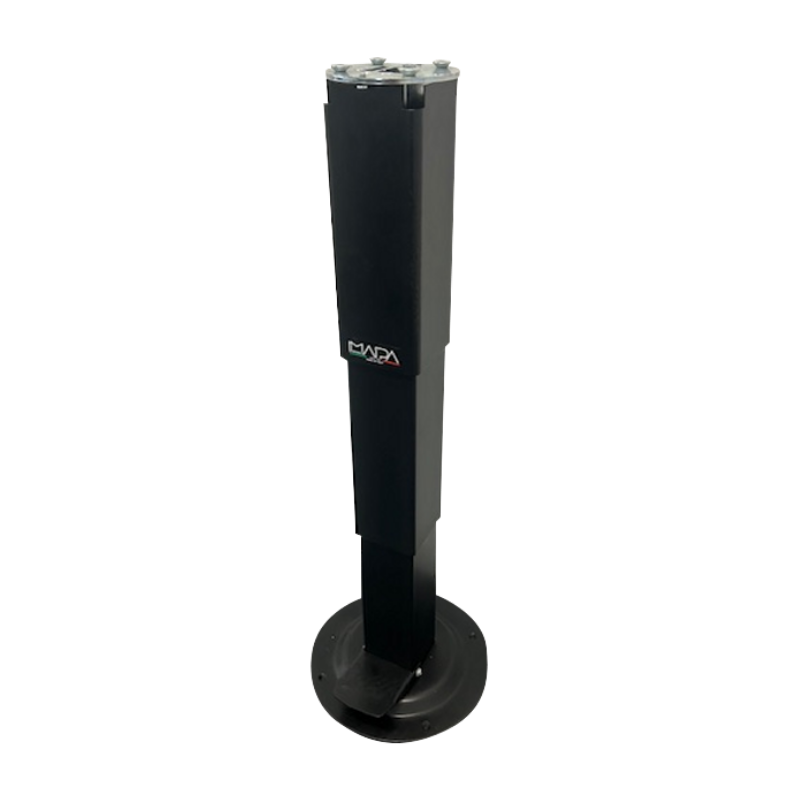

Telescopic Height Adjustment
Raises to dining height or lowers to bed position using the convenient foot button.

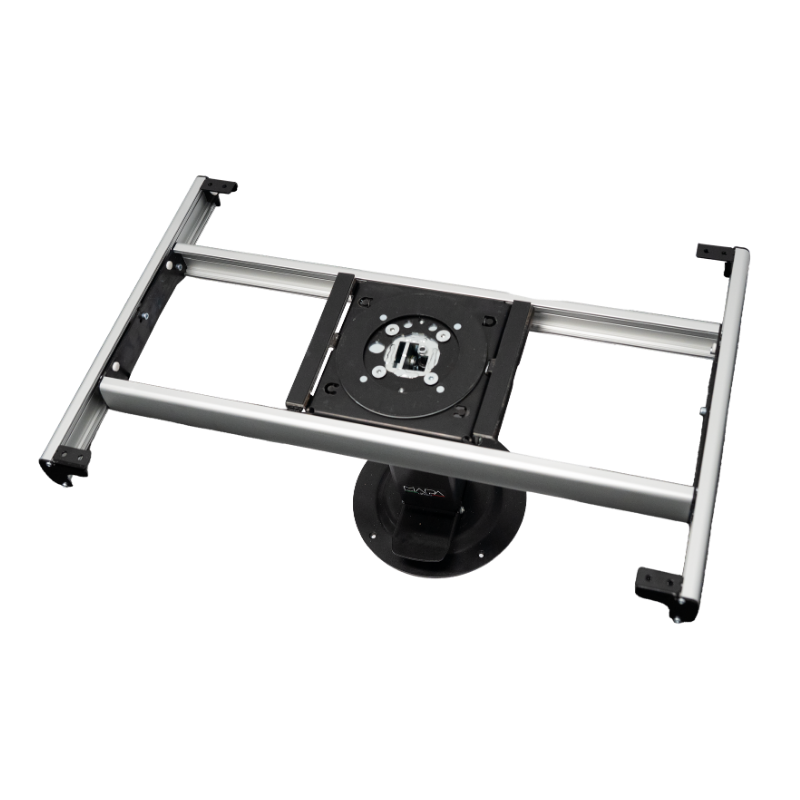

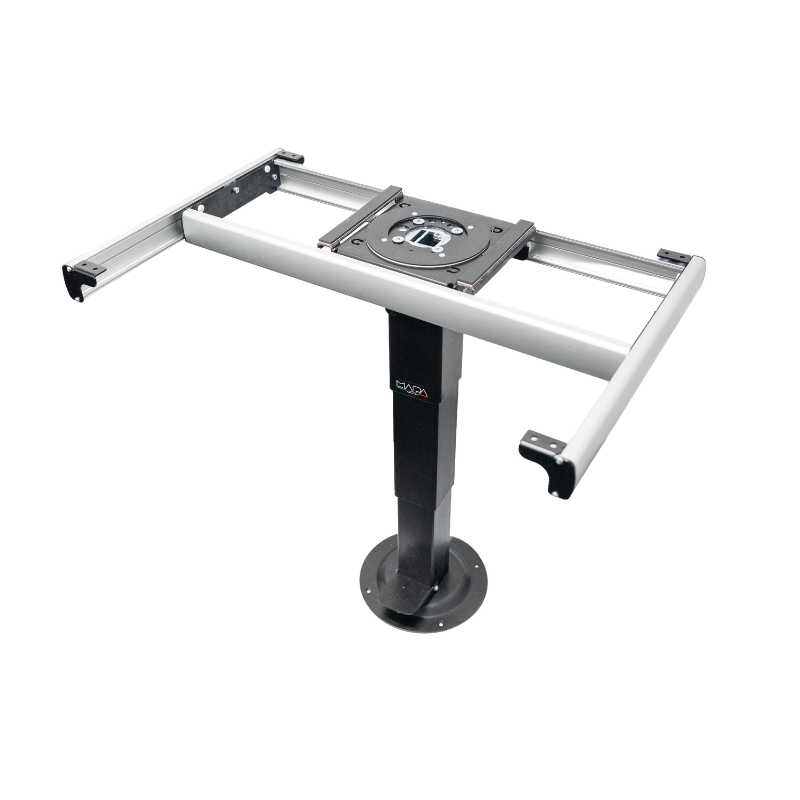

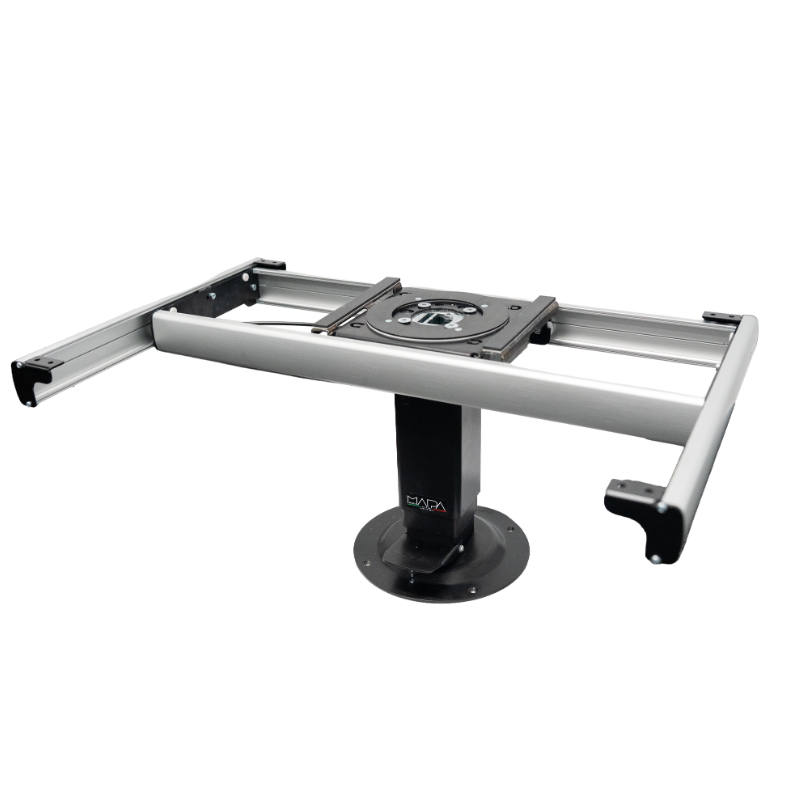

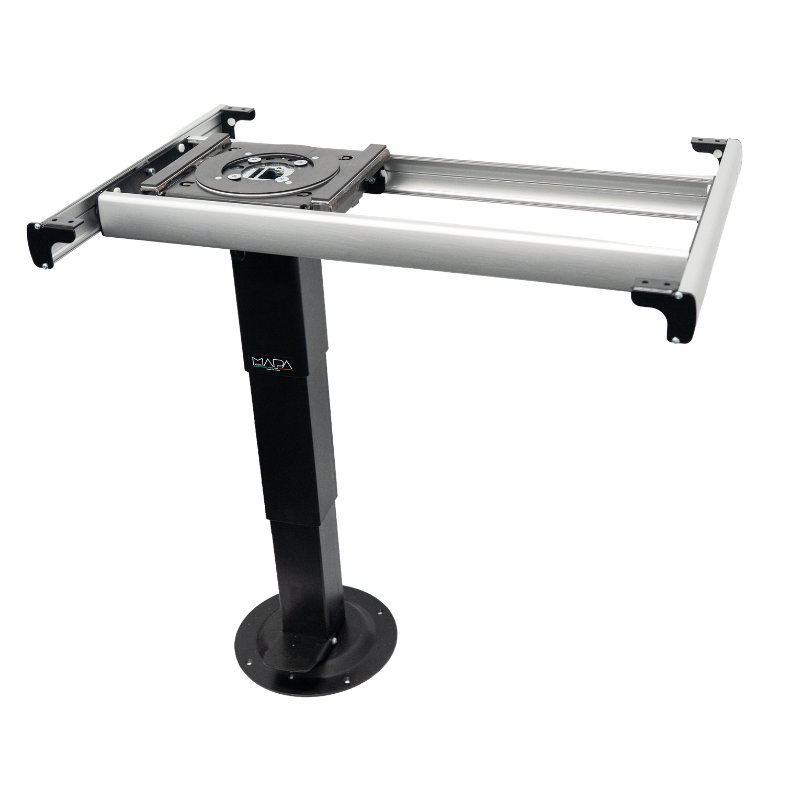

Turntable & Sliding Mechanism
Allows the tabletop to slide in multiple directions and rotate for maximum positioning flexibility.
Smooth Sliding Action
Metal bearing system ensures effortless movement and positioning.
Durable Aluminium Construction
High-quality aluminium sliding mechanism designed for strength and longevity.
Easy Foot Button Operation
Quick and convenient raise/lower function via the integrated base button.
Italian-Made Quality
Solid and robust design engineered and manufactured in Italy.
Adjustable Bed Height
Bed position factory preset at 330mm and adjustable up to 410mm if required.
Modern Interior Colour
Black finish designed to suit a wide range of caravan interiors.
FAQ
Q: Is the Nuova Mapa table leg easy to install?
Yes, just secure the base plate to a solid floor using suitable fixings (not supplied). The leg must be firmly mounted for best stability.
Q: Is the tabletop included?
No. The tabletop and fixing screws are not included, allowing you to choose the size and style that suits your setup.
Q: Can the table height be adjusted?
The Bed Mode can be adjusted between 330mm and 410mm (preset at 330mm)
Q: Does it lock at intermediate heights?
No. The leg locks in either the full upright table position or the lowered bed position.
Q: How do I adjust the bed height?
Extend the leg fully using the black base knob.
Remove the plastic top cover (3 screws).
Adjust the internal bolt and nut using vice grips and an 8mm socket spanner.
Reinstall the cover and screws.
Refer to the supplied instructions for full details.
Q: How far can the tabletop move?
Slides 100mm forward
Slides 100mm backward
Slides 200mm left
Slides 200mm right
It also swivels using its integrated turntable system.
Q: What is the weight rating in bed mode?
The system supports up to 100kg when used in bed configuration.
