Tycab Australia is the major manufacturer of automotive cable in Australia. Tycab has been at the forefront of manufacturing automotive aftermarket and OEM cables for over 30 years. All Tycab cable are made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant. Tycab Australia automotive cable is renowned for reliability, quality and flexibility.

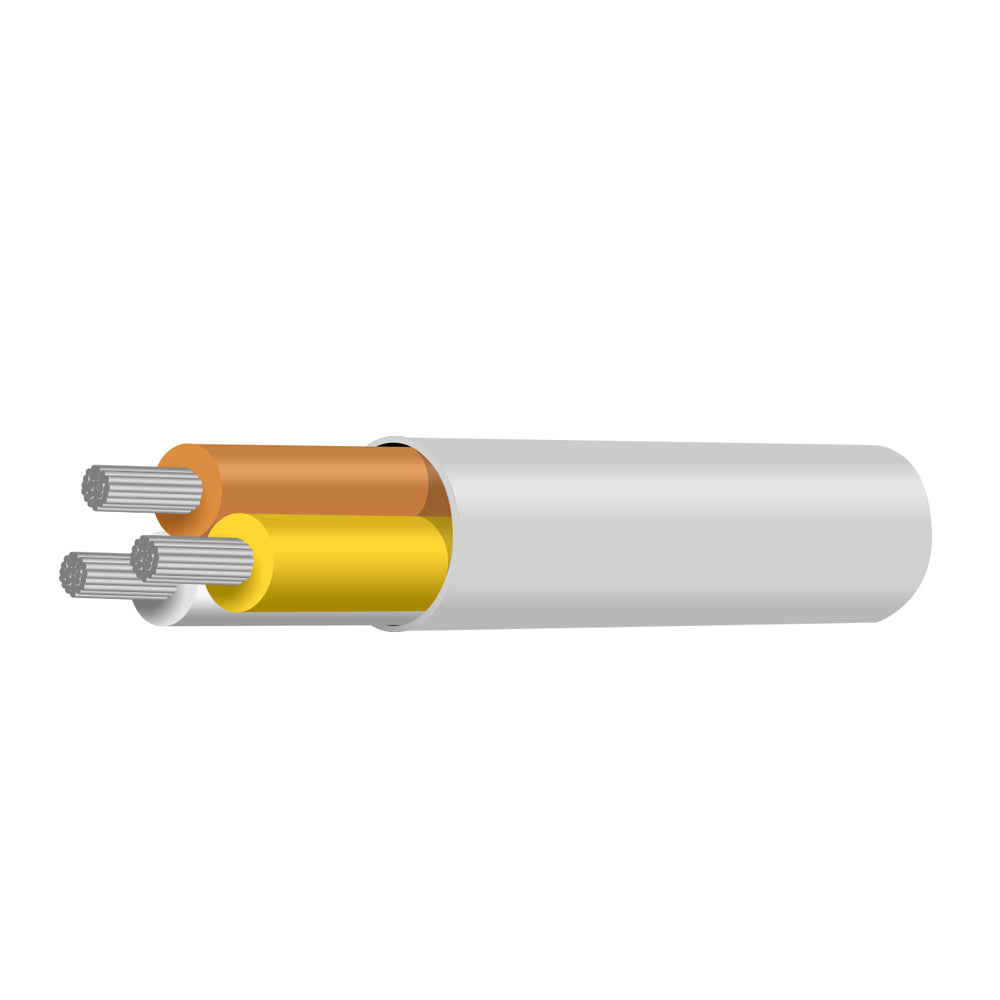

Marine Multi Core Trailer Cable
V90 PVC INSULATED
Application: Marine Trailer Wiring
Conductor: TINNED COPPER WIRE (TCW) to AS/NZS 1125
Insulation: RoHS Compliant
Core Colours: 3 Core: White, Yellow, Brown
5 Core: White, Yellow, Brown, Red, Green
7 Core: White, Yellow, Brown, Red, Green, Blue, Black
Sheath: RoHS Compliant 5V90 P.V.C. to AS/NZS 3808
Sheath Colour: White
Packs: 50, 100 metres
|
NO. OF CORES |
Nominal Area (mm) |
CONDUCTOR NO/DIA (mm) |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
*AMP Rating JASO D609 at 30C |
Electrical Resistance at 20C (ohm/km) |
Nominal O.D. (mm) |
Mass (kg/100m) |
|
3 |
1.84 |
23/0.32 |
0.4 |
0.6 |
19 |
10.2 |
7.2 |
8.4 |
|
7 |
1.84 |
23/0.32 |
0.4 |
0.6 |
14 |
10.3 |
9 |
17.7 |
|
Part Number |
Description |
|
500-08216 |
MARINE DC Cable 50m Reel - TINNED 3-CORE x 4MM WHITE Multi-Core. |
|
500-08218 |
MARINE DC Cable 100m Reel - TINNED 3-CORE x 4MM WHITE Multi-Core. |
|
500-08221 |
MARINE DC Cable 50m Reel - TINNED 7-CORE x 4MM WHITE Multi-Core. |
|
500-08222 |
MARINE DC Cable 100m Reel - TINNED 7-CORE x 4MM WHITE Multi-Core. |
