Coast 4-Point Door Range

Product Code:

600-10000
Coast 4-Point Door Range

Built for Australian conditions, designed for the road ahead

The Coast 4-Point Door represents a new generation of RV access. Developed for durability, ease of installation, and dependable ventilation, this door range is engineered to serve the needs of OEMs and the wider RV trade with a professional-grade finish and cost efficiency that makes sense for builders, dealers, and repairers alike.

Product Description

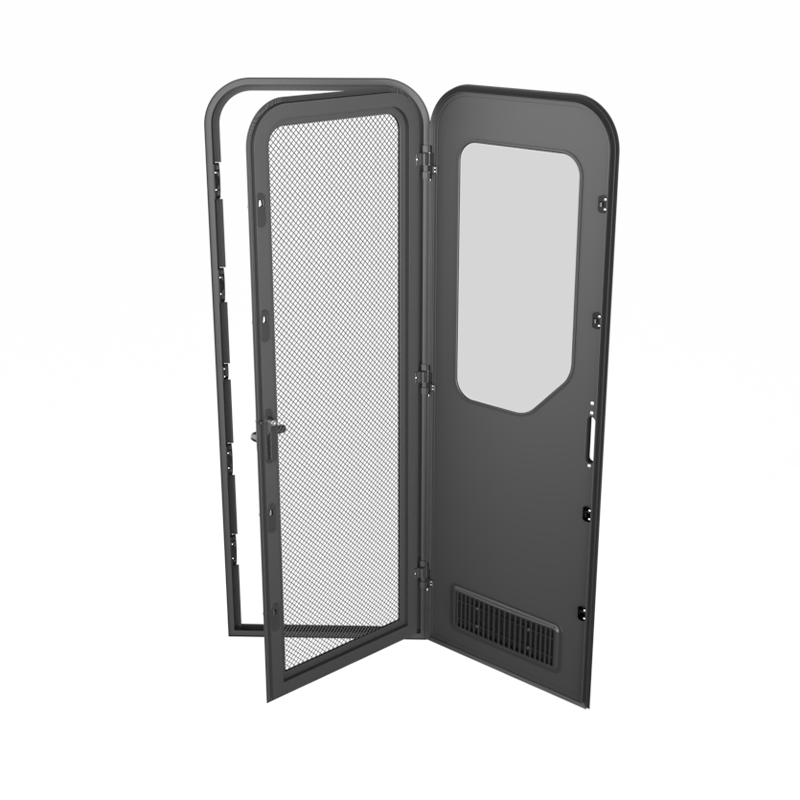

Each door features a black aluminium frame with the choice of white or black infill, providing a clean and cohesive exterior aesthetic that complements modern van design. The acrylic window delivers strong visibility and weather resistance, while the inner screen door offers immediate cross-flow ventilation and insect protection in one simple movement.

Available in square-cornered and two-radius options, the range is built to integrate seamlessly with a variety of caravan wall structures. The flush-fit lock and handle system includes a 4-point locking mechanism for enhanced security, giving travellers peace of mind wherever they park.

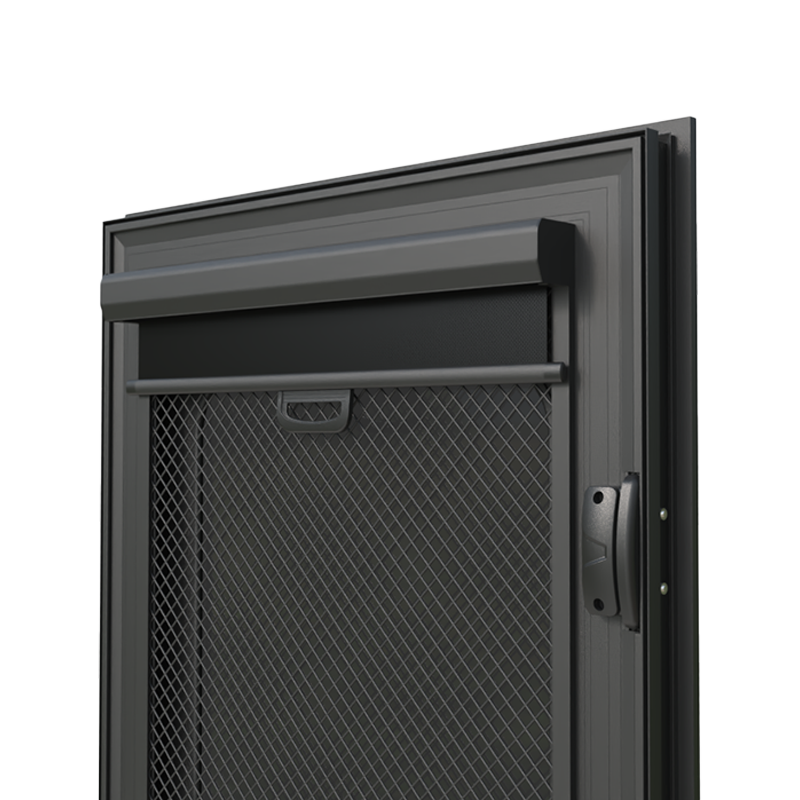

For compliance and comfort, a 248 cm² passive air vent ensures constant airflow even when appliances are in use, maintaining safety standards across all RV configurations. Every door arrives pre-drilled and capped, ready for the Coast RV Roller Blind, reducing fitment time for OEMs and aftermarket installers.

Each unit is individually packaged and protected to safeguard the finish during freight and handling, ensuring it arrives ready to install.

Care Tip:

The window is acrylic, and like other acrylic RV windows (e.g. Dometic), it may craze if cleaned with petrochemical-based products. Only water-based cleaners should be used.

Specifications

  • Part No.

    Size (mm)

    Corner Type

    Hinge

    600-10000

    1750 × 622

    Square

    LH

    600-10002

    1750 × 622

    Square

    RH

    600-10006

    1750 × 622

    2RC

    LH

    600-10010

    1750 × 622

    2RC

    RH

    600-10014

    1850 × 622

    2RC

    LH

    600-10018

    1850 × 622

    2RC

    RH

    600-10020

    1822 × 622

    2RC

    LH

    600-10022

    1822 × 622

    2RC

    RH
