JACKAHD Universal 12V Lift Kit to Replace Winch Setup | All Camper Roofs

When you need, or want that extra Muscle! The Heavy Duty JackaJay kit is your answer.

Designed for larger Jaycos, Goldstream or Coromal campers. Or if you have roof mounted AC units.

Built for all campers with a roof corner weight heavier than 50kgs.

Make raising a larger or more heavily equipped camper roof easier with the JACKAHD 12V Electric Roof Lift Kit. Developed as the heavy duty option within the JACKA range, JACKAHD replaces the original manual winch and cable mechanism with stronger electric motors and an upgraded controller designed for more demanding camper roof applications.

The system uses four independently driven motors to move premium pushrods through enclosed corner guides. This removes the original cable network and replaces the central manual winch with a controlled 12V drive system operated through a touchscreen controller.

Automatic operation raises or lowers the roof through a complete cycle, while manual jog mode provides greater control when smaller movements are needed. The controller continually monitors the system and can identify faults at individual corners. Obstruction, overload and undervoltage protection are built into the operating system to help protect the camper and lifting components.

JACKAHD is intended for larger campers and heavier roof configurations, including d campers carrying equipment such as air conditioning, solar panels or roof racks. It can retrofit to compatible existing telescopic masts or be combined with JACKAMAST replacements.

Key features

• Heavy duty 12V electric roof lift system
• Stronger motors and upgraded controller
• Four independently driven camper corners
• Touchscreen automatic lift and lower control
• Manual jog operation
• Fault and individual corner status reporting
• Obstruction and overload detection
• Live battery voltage monitoring
• Undervoltage protection
• Enclosed pushrod guides
• Colour coded installation components
• Compatible with suitable original masts or JACKAMAST replacements
• Five year warranty

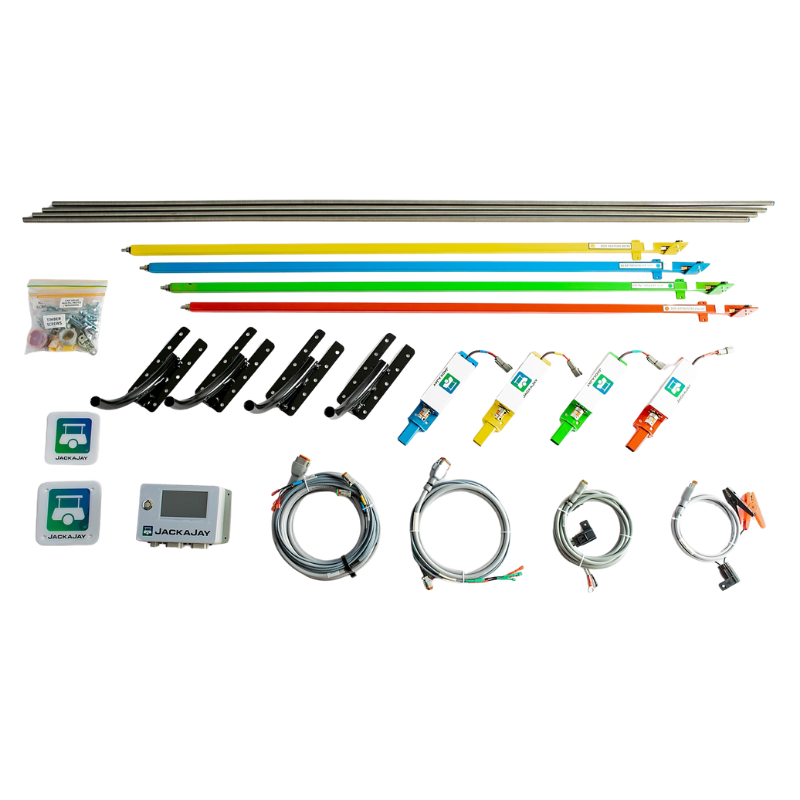

The kit includes:

    4 x JackaHD High Powered Motor Drives
    4 x Tempered Flexible Push Rods
    4 x JackaHD Mandel Bent Corner Guides
    1 x JackaHD Controller
    1 x Harness Kit (front, rear, battery)
    1 x Power Supply Jumper Lead
    2 x Logo Plate and Decal
    1 x Mount Kit
    1 x User & Installation Guide
