Specifications
Weight 24 kg
Dimensions 163 × 33 × 11 cm
JACKAHD & JACKAMAST COMBO Full Complete 12V Camper Lift Kit(set) - All Camper Roofs
$0.00
Skip to product information
FIND A STOCKIST
JACKAHD & JACKAMAST COMBO Full Complete 12V Camper Lift Kit(set) - All Camper Roofs
250-03053
For all campers with a roof corner weight heavier than 50kgs.
The JackaJay lift system is a 12V Electric Roof Lift System for all wind up Camper Trailers.
Driven by precision linear motor drive technology, with energy efficient direct drive lift which offers outstanding dependability.
No reworking of the structure or cabinetry within your camper trailer. JackaJay fits in exactly the same place as the old winch and cable system. Simply remove the old system and install JackaJay.
The only component that is retained is the telescopic legs.
Safety Features
- JackaJay Roof Lock feature, ensuring zero movement of roof with Controller Turned off. No nasty surprises!
Technology
- Full colour LCD 4.3 inch touch screen.
- Fault / Obstruction detection.
- Elimination of operator error.
- Plug and Play Harnessing
Complete a full heavy duty roof lifting renewal with the JACKAHD and JACKAMAST Complete 12V Camper Lift Kit. Designed for larger campers and more demanding roof configurations, this package replaces the original manual winch, cables, guides, pushrods and telescopic lifter masts with an integrated electric lifting system.
The JACKAHD drive system uses four heavy duty electric motors, direct drive tubes, enclosed corner guides and premium pushrods to raise and lower the camper roof. A central touchscreen controller provides automatic operation, manual jog control, individual corner status and built in system protection.

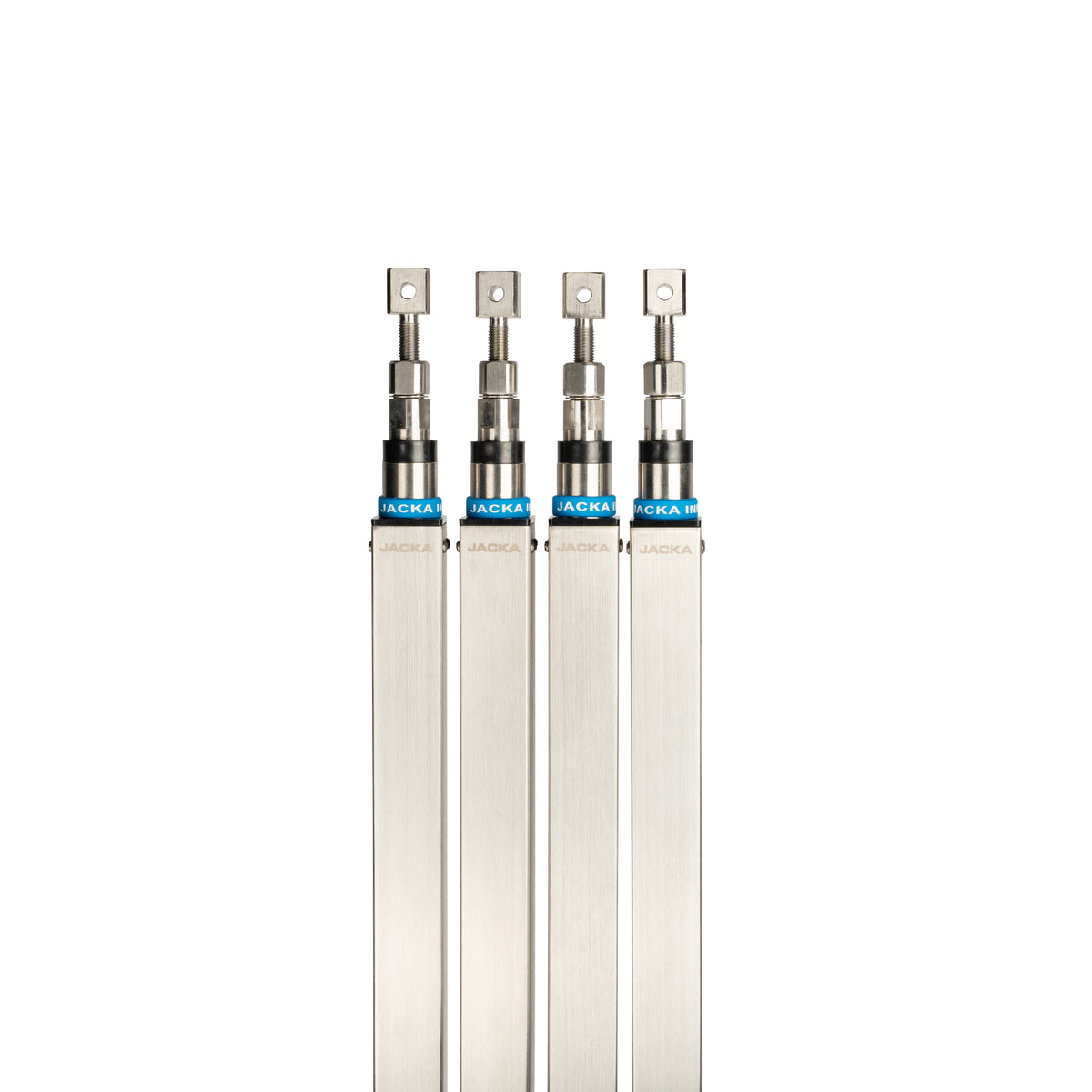

The package also includes four stainless steel JACKAMAST telescopic lifters. Their three piece adjustable design allows the final roof connection to be configured for the camper, while extended internal support guides help provide smoother movement and greater mast support.
Premium roof bolts and mast mounting brackets complete the system, making this the most comprehensive JACKA upgrade option for compatible heavier roof applications.

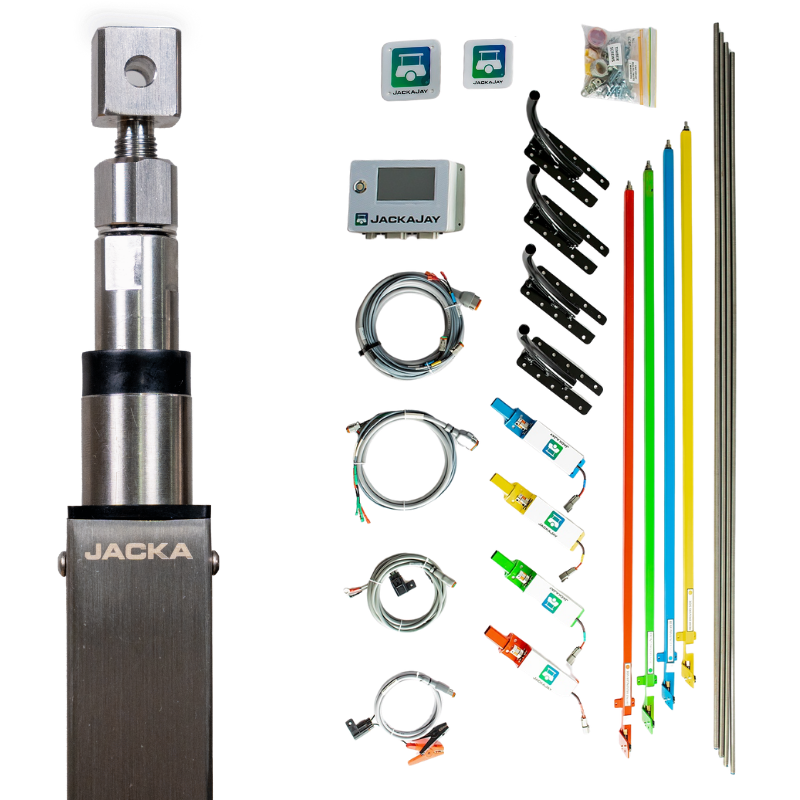

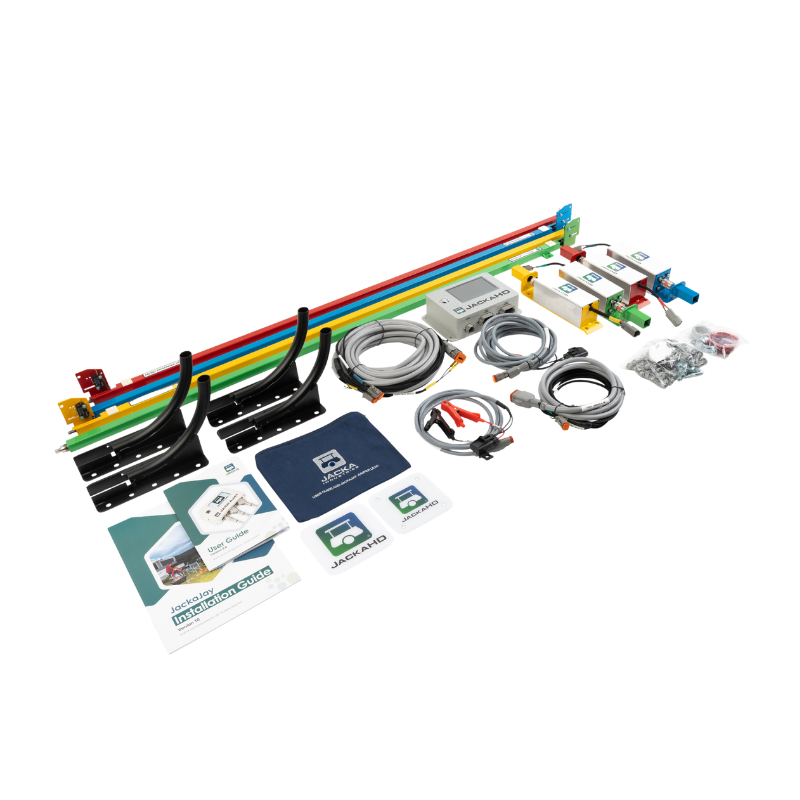

Kit includes
• JACKAHD heavy duty 12V electric roof lift system
• Four JACKAMAST telescopic lifter masts

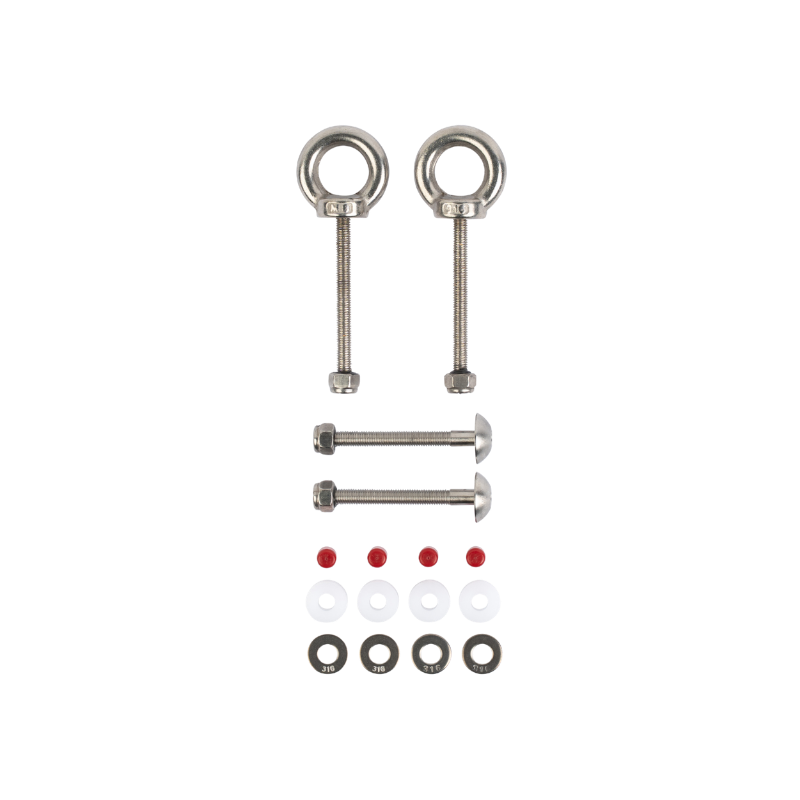

• Premium roof bolt upgrade kit
• Premium mast mounting bracket set
• Heavy duty motors and upgraded controller
• Direct drive tubes and enclosed corner guides
• Premium pushrods
• Wiring harnesses and emergency jumper lead
• Installation hardware and supporting components
Key features
• Complete heavy duty drive and mast replacement
• Automatic and manual touchscreen operation
• Stronger motors for more demanding applications
• Fault, obstruction and overload detection
• Battery monitoring and undervoltage protection
• Stainless steel adjustable telescopic masts
• Colour coded installation system
• Five year warranty

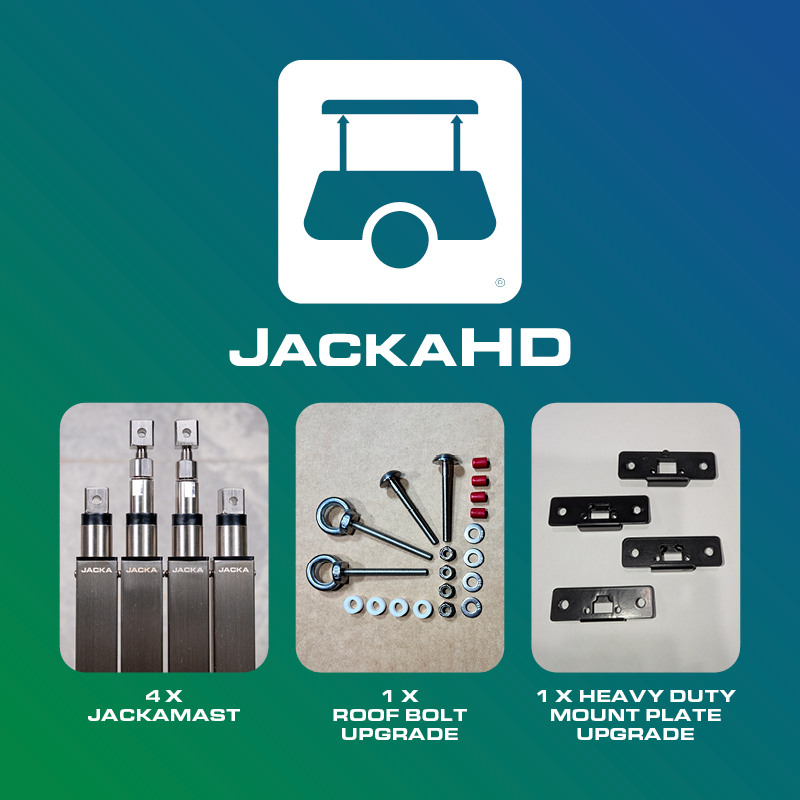

Includes:
1 x JackaHD lift system
4 x JackaMast
1 x Roof bolt upgrade
1 x Heavy Duty mount plate upgrade
