Tycab Australia is the major manufacturer of automotive cable in Australia. Tycab has been at the forefront of manufacturing automotive aftermarket and OEM cables for over 30 years. All Tycab cable are made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant. Tycab Australia automotive cable is renowned for reliability, quality and flexibility.

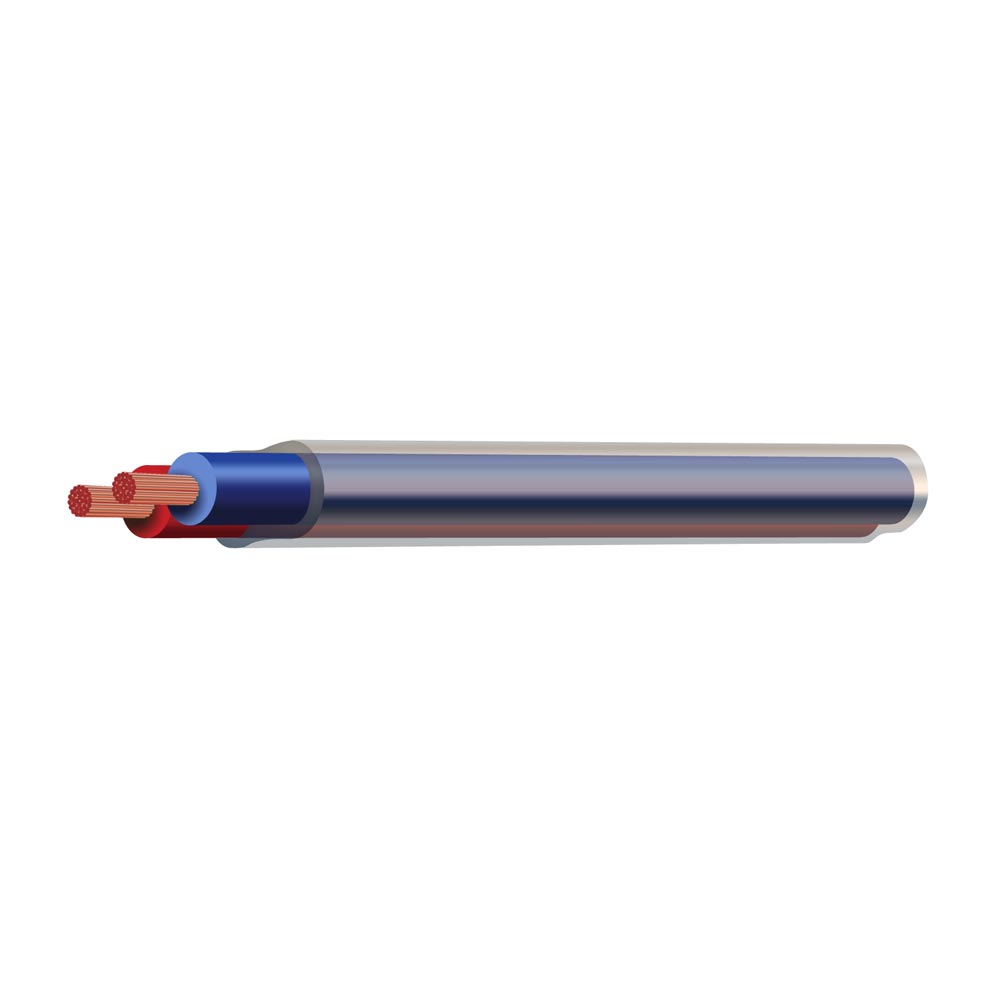

Figure 8 Battery
V90HT PVC INSULATION AND SHEATH
Applications: Indoors and Outdoors, Motorised Vehicles, Fork Lifts, Field Conveyor, In High Quality Booster Cables, Battery and Starter
Conductor: Nominal 0.2mm OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Insulation: V90HT PVC to AS/NZS 3808 0.6/1KV
Core Colours: Red and Blue | LDX2CBB20A *** Red and Black
Sheath: UV Stabilised PVC type rated V90HT to AS/NZS 3808
Sheath Colour: Clear
Packs: 50 or 100 metres
|
Conductor No/Dia (mm) |
Nominal Area (mm) |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
**AMP Rating at 30C |
Electrical Resistance at 20C (ohm/km) |
Nominal O.D. (mm) |
Mass (kg/100m) |
|
50/0.25 |
2.5 |
0.8 |
0.8 |
25 |
7.98 |
5.3 x 11.0 |
9.6 |
