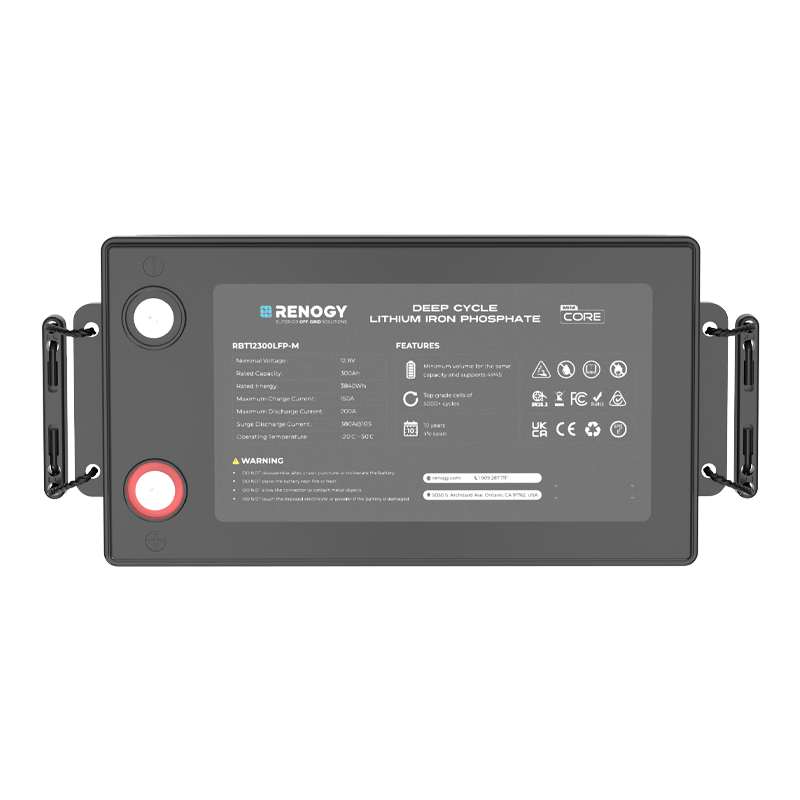

RENOGY MINI | 12V 300Ah LiFePO4 Battery 384x194x253mm

Product Code:

500-11062
RENOGY MINI | 12V 300Ah LiFePO4 Battery 384x194x253mm

When you need serious off-grid power without sacrificing valuable space, the Renogy CORE Mini 12V 300Ah Lithium Iron Phosphate (LiFePO₄) Battery is ready to deliver. Compact, lightweight, and built tough, this high-capacity battery is perfect for caravans, camper trailers, 4WDs and marine applications where big energy is essential.

Product Description

Despite its name, the CORE Mini packs a huge 3840Wh of usable energy into a compact footprint that fits neatly into tight storage areas. It’s built with premium lithium cells for long-lasting performance, offering up to 5000 cycles at 80% depth of discharge (DoD)—making it a dependable choice for extended touring, off-grid living, or energy-hungry setups.

With a built-in Battery Management System (BMS), the CORE Mini provides automatic protection against overcharging, over-discharging, short circuits and low-temperature charging. Whether you’re powering fridges, air-conditioners, inverters, or essential camping gear, this battery is ready for the demands of life on the road.

Key Features:

  • Massive 300Ah Capacity – High-output power in a compact, easy-to-fit case
  • Built-in BMS Protection – Safe and reliable with smart internal safeguards
  • Lightweight Design – At just 25kg, it’s much lighter than equivalent AGM setups
  • Weather-Resistant Build – IP65-rated to handle harsh touring environments
  • Long Cycle Life – Up to 5000 cycles at 80% DoD for excellent long-term value
  • Expandable System – Connect multiple batteries to build your ideal power bank

Specifications

    • Battery Type: Lithium Iron Phosphate (LiFePO₄)
    • Rated Capacity: 300Ah
    • Nominal Voltage: 12.8V
    • Cycle Life: 5000 cycles (80% DOD at 25°C)
    • Charge Voltage Range: 10V to 14.8V
    • Maximum Charge Current: 150A
    • Maximum Discharge Current: 200A
    • Peak Discharge Current: 380A (up to 10 seconds)
    • Charge Temperature Range: 0°C to 60°C
    • Discharge Temperature Range: -20°C to 65°C
    • Connection Method: Up to 4 in series, 4 in parallel, or 4P4S configuration
    • Protection Rating: IP65 (dust and water resistant)
    • Dimensions (L x W x H): 384 x 194 x 253 mm
    • Weight: 25.0 kg
    • Terminal Bolt Size: M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm
