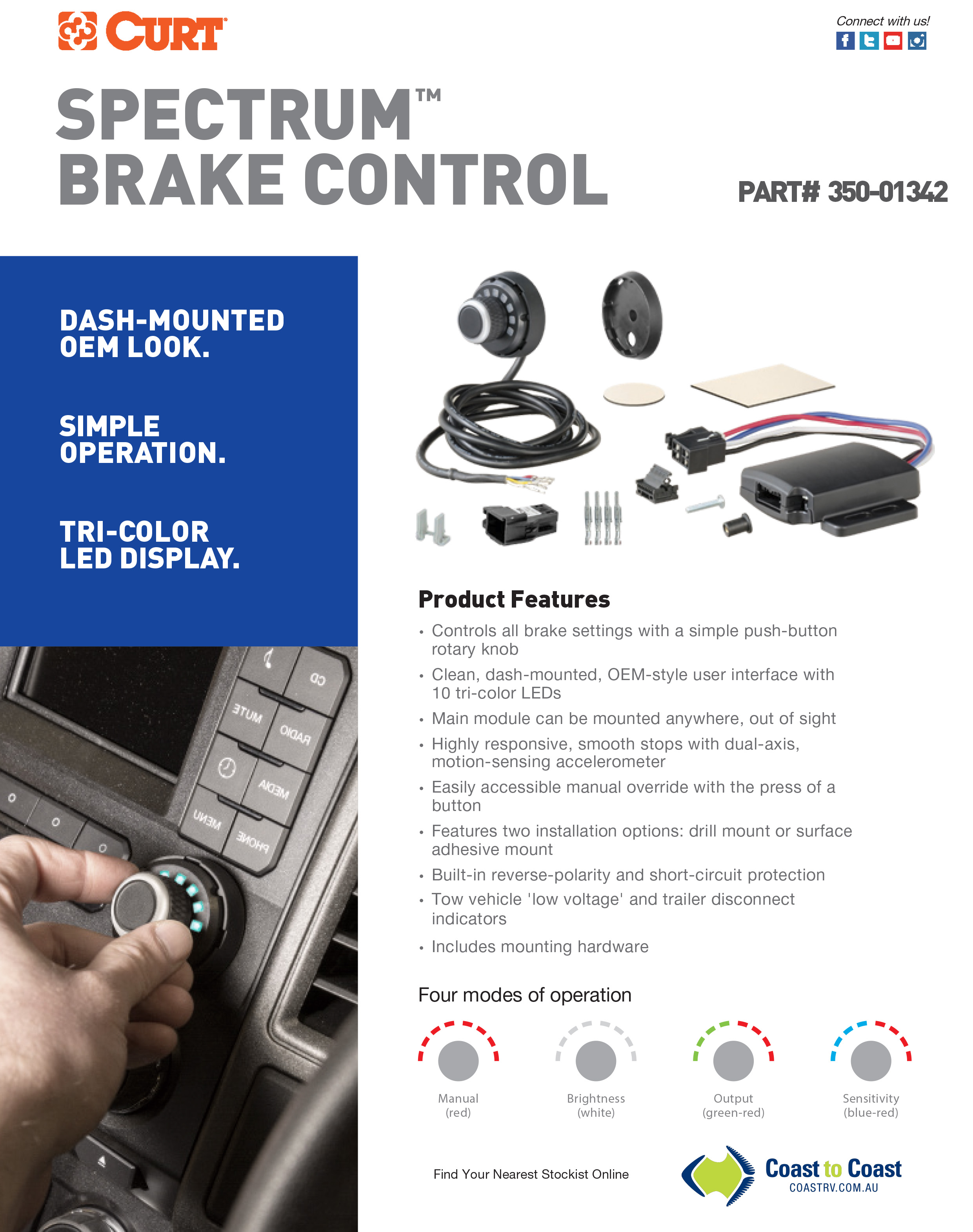

CURT Spectrum Brochure

View Brochure
View Manual
the RVX Manual

CURT SPECTRUM Brake Controller - DASH Mount

Product Code:

CURT SPECTRUM Brake Controller - DASH Mount

Powerful, precise braking operation in an extremely simple and subtle design, dash-mounted inside your vehicle.

Product Description

  • Controls all brake settings with a simple push-button rotary knob

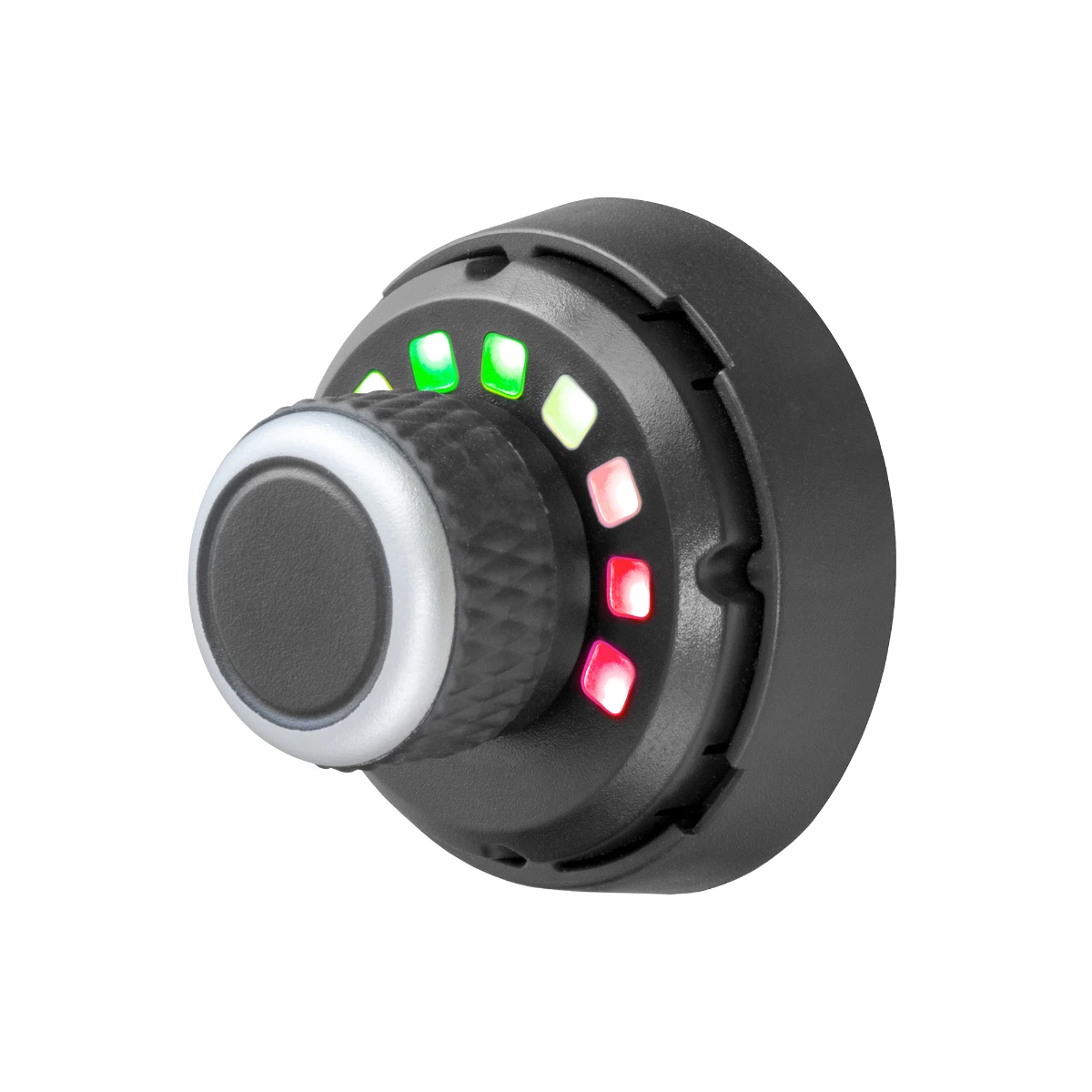

  • Clean, dash-mounted, OEM-style user interface with 10 tri-colour LEDs
  • The main module can be mounted out of sight
  • Motion-sensing accelerometer for highly responsive, smooth stops
  • Easily accessible manual override with the press of a button
  • Features two installation options: drill mount or surface adhesive mount
  • User-selectable power output and trailer brake light activation
  • Automatic levelling and calibration eliminate setup requirements
  • Operates 2-8 trailer brakes at a time (1-4 axles)
  • Built-in reverse-polarity and short-circuit protection
  • Compatible with low-volt, PWM, ABS, cruise control and electric over hydraulic
  • Tow vehicle 'low voltage' and trailer disconnect indicators
  • Includes mounting hardware
  • Knob outside diameter is 48mm
