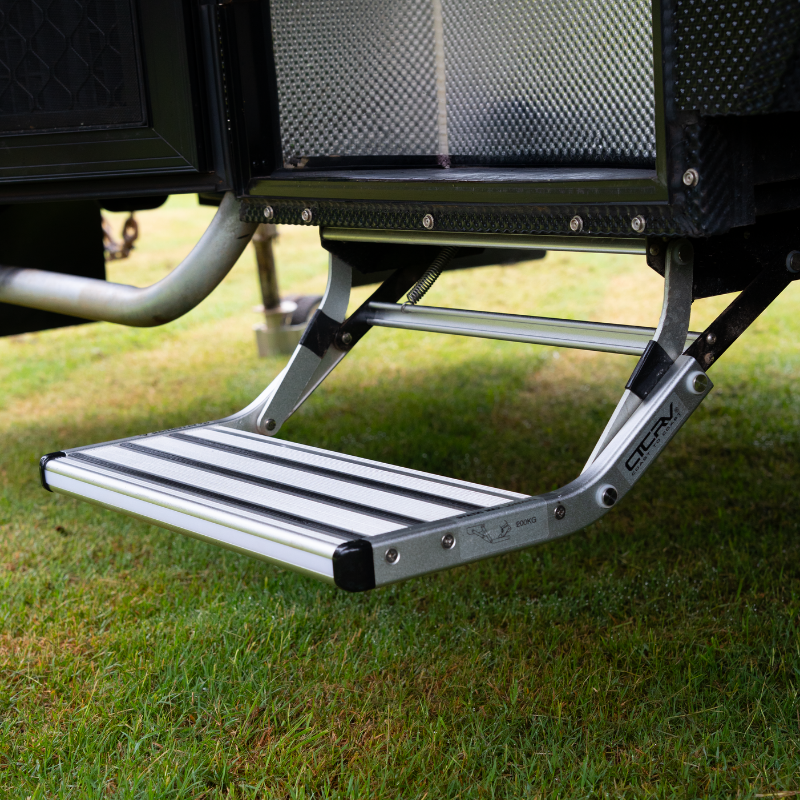

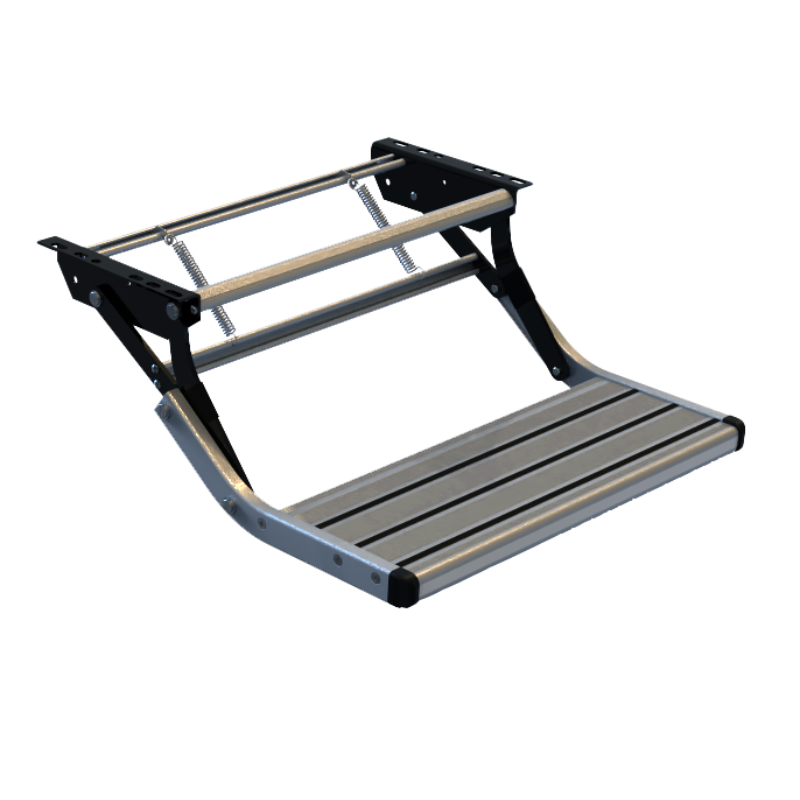

Take a step in the right direction with the Coast RV Single Pull-Out Step.
A lightweight yet heavy-duty solution designed for safe, reliable access to your RV.
Manufactured from aluminium and steel, this manual pull-out step is built to withstand regular touring conditions while remaining easy to operate. The non-slip step board provides secure footing, and the smooth pull-out/push-in action makes setup quick and effortless.
Ideal for caravans, motorhomes and camper trailers requiring a compact single-step solution.
Features:
• Lightweight aluminium and steel construction
• Durable design built for regular use
• Non-slip step board for added safety
• Smooth manual pull-out / push-in operation
• Compact single-step configuration
• Maximum static load rating: 200kg
Instilation Requirements:
• Hardware not included
• Minimum 4 x M8 bolts with locking nuts required
• Installer must ensure adequate floor clearance in both open and closed positions
• Step must not protrude past vehicle body
• Ensure no gas lines, electrical wiring or fuel lines are in mounting area
Height Compliance Requirements:
• Distance from ground to underside of bottom step must not exceed 400mm
• Gap from top surface of step to vehicle base must be between 200mm - 300mm
FAQ
Q: What is the exact overall width of this step?
AThe overall width is 545mm.
Q: Is this measurement the tread width or the total frame width?
545mm refers to the total overall width of the step assembly, not just the tread surface
Q: Does it come with mounting bolts?
A: No. Mounting hardware is not supplied
Q: Can I bolt this directly to my caravan floor?
It must be mounted to a structurally supported surface such as a reinforced chassis rail or suitable bracket. Do not mount to unsupported flooring
Q: What is the drop height from mounting surface to step?
Approx 513mm from mounting to top of step.
