Specifications
|
Conductor No. / Dia (mm) |
Nominal Area (mm) |
Insulation Thickness (mm) |
Electrical Resistance at 20C (ohm/km) |
Nominal O.D. (mm) |
Mass (kg/100m) |
|
7/0.67 |
2.5 |
0.8 |
7.4 |
3.65 |
3.3 |
Building Cable
$0.00
Skip to product information
FIND A STOCKIST

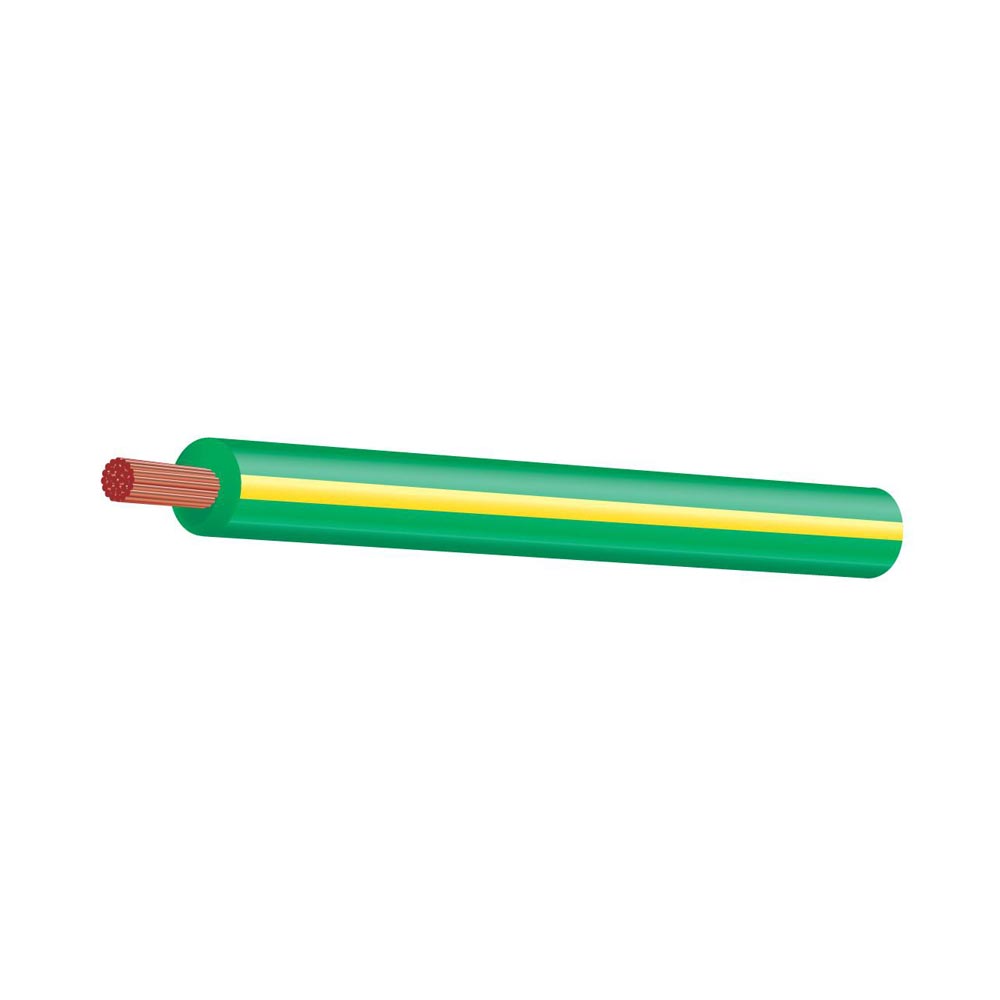

Building Cable
500-08300
Tycab Australia is the major manufacturer of automotive cable in Australia. Tycab has been at the forefront of manufacturing automotive aftermarket and OEM cables for over 30 years. All Tycab cable are made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant. Tycab Australia automotive cable is renowned for reliability, quality and flexibility.
SINGLE CORE V90HT P.V.C. TO AS/NZS 5000.1
0.6/1KV VOLTAGE RATING
Application: Building / Power Cable 0.6/1KV
Conductor: Plain Copper Wire to AS1125
Insulation: V90HT PVC to AS3808
Colours: Black, Blue, Brown, Orange, Violet, Red, White, Grey, Green/Yellow Stripes available by request
Packs: 100, 500 metres
Typical Properties Standard: AS5000.1
